Description
Product Overview

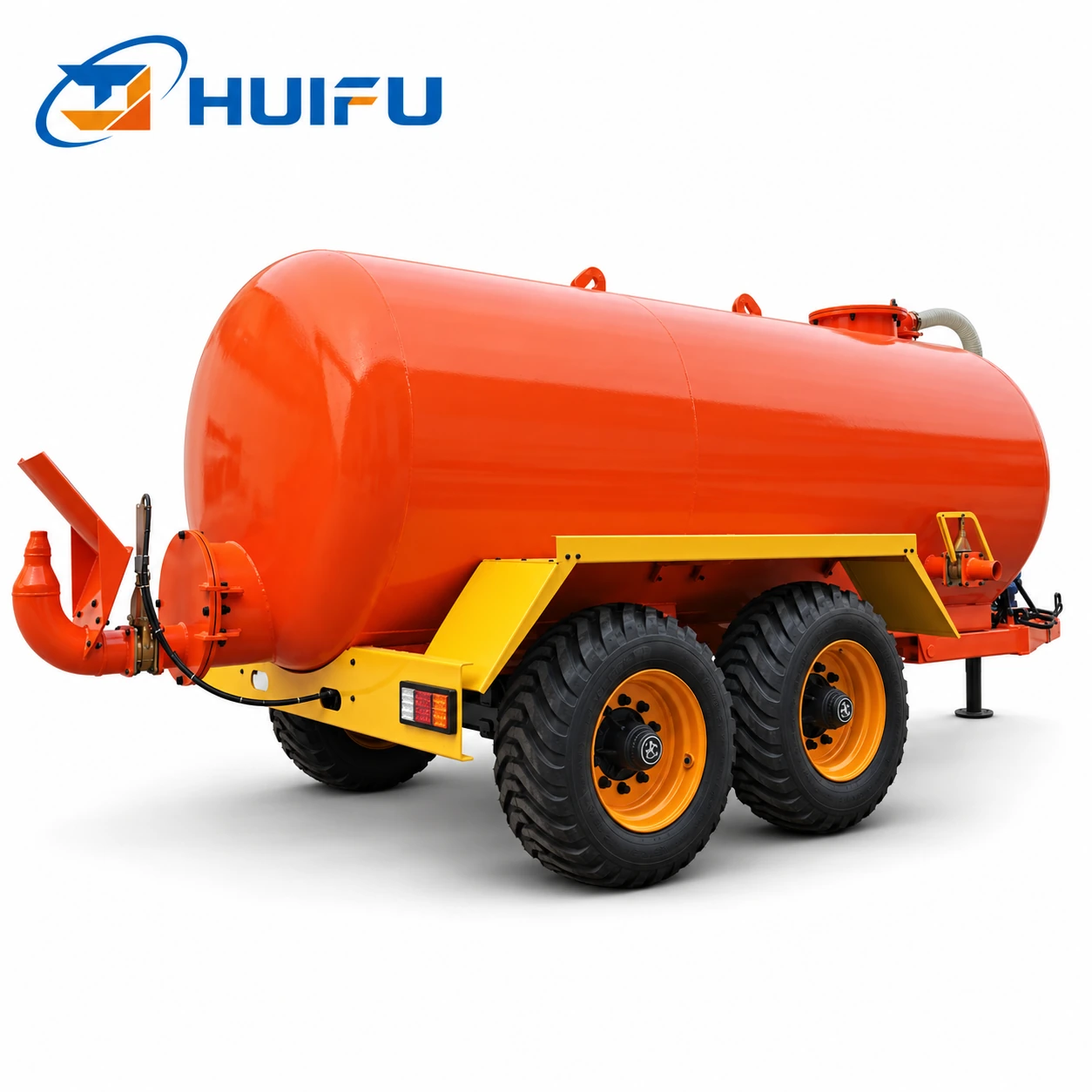

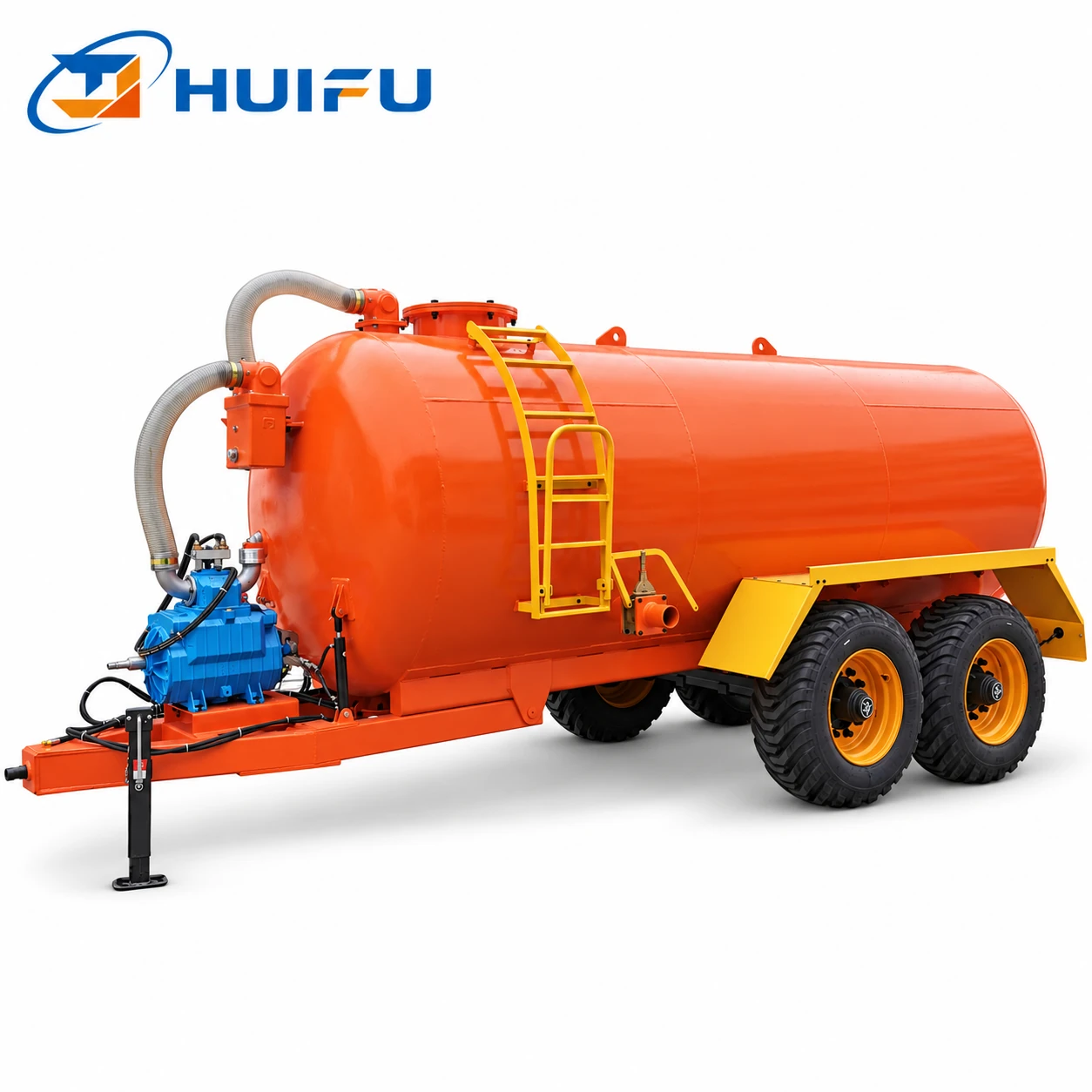

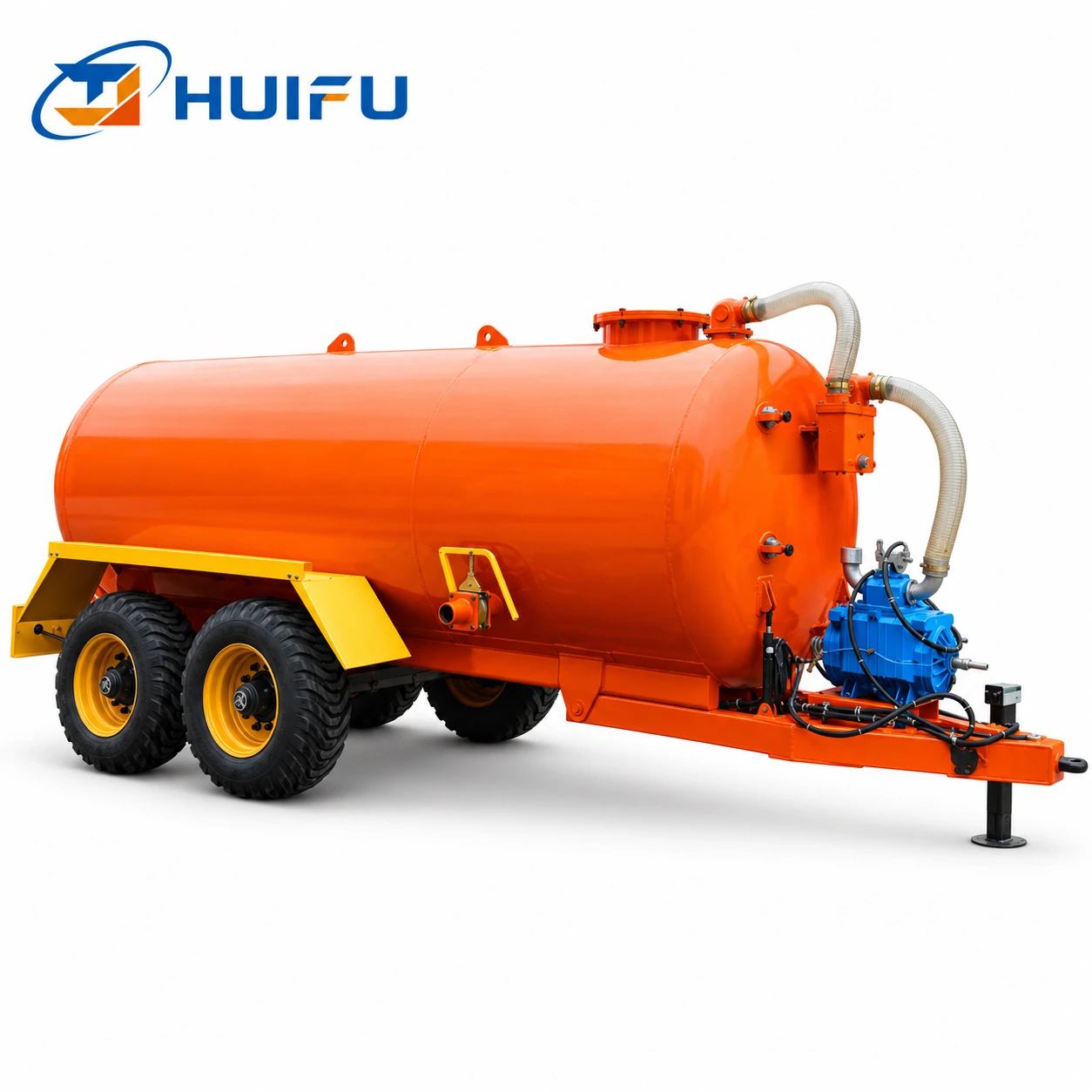

The 8 Cubic Meter Liquid Fertilizer Spreader is designed for liquid fertilizer transportation and spraying operations in agricultural applications.
The machine adopts a tank-type structure with a self-priming and spraying integrated system. It uses tractor hydraulic power for operation and supports rear spraying with adjustable spraying width.
It is suitable for liquid fertilizer application where controlled spraying and mechanical operation are required.
Key Features and Advantages
Tank-Type Structure
The machine uses a tank body structure for liquid fertilizer storage and spraying operations.
Self-Priming and Spraying Integrated System
The spraying system combines liquid fertilizer suction and spraying functions.
Hydraulic Operation Control
The machine adopts full hydraulic operation control for operating the spraying system.
Adjustable Application Operation
The spraying operation can be adjusted according to field requirements.
Trailed Design
The machine uses a trailed connection method and works with agricultural tractors.
Technical Specifications
| Product Type | Liquid Fertilizer Spreader |
|---|---|
| Power Requirement | Above 90 HP |
| Tank Dimensions | 4262*φ1612 |
| Overall Dimensions | 6122*2248*2033 |
| Tank Volume | 8m³ |
| Maximum Load Capacity | 8000kg |
| Spraying Device Type | Self-Priming and Spraying Integrated System |
| Structure Type | Tank Type |
| Operating Method | Rear Spraying |
| Spraying Width | ≥10M |
| Control Method | Full Hydraulic Operation |
| Connection Type | Trailed |
| Tire Specification | 16/70-20 |
Applications
Suitable for:
- – Agricultural fields
- – Liquid fertilizer application operations
Applicable materials:
- – Liquid fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check pipes, spray nozzles, valves, pumps and other components before operation. Ensure there are no leaks, blockages or damage.
Tank cleaning
Clean the tank before use to remove residue and impurities that may affect spraying performance.
Fertilizer selection
Use liquid fertilizer suitable for the machine requirements. Avoid materials with excessive viscosity or impurities that may block spray components.
Operating safety
Maintain a stable driving speed during field operation. Observe spraying conditions and stop the machine for inspection if abnormal operation, leakage or blockage occurs.
Post-operation cleaning
Clean the tank, pipes and spray components after operation to reduce corrosion caused by fertilizer residue.
Maintenance Recommendations
- – Clean the equipment after each operation.
- – Check pipes, valves, pumps and spray nozzles regularly.
- – Inspect for leakage or blockage before use.
- – Store the machine in a dry and ventilated area.
- – Apply rust prevention measures to parts requiring protection during storage.
