Description
Product Overview

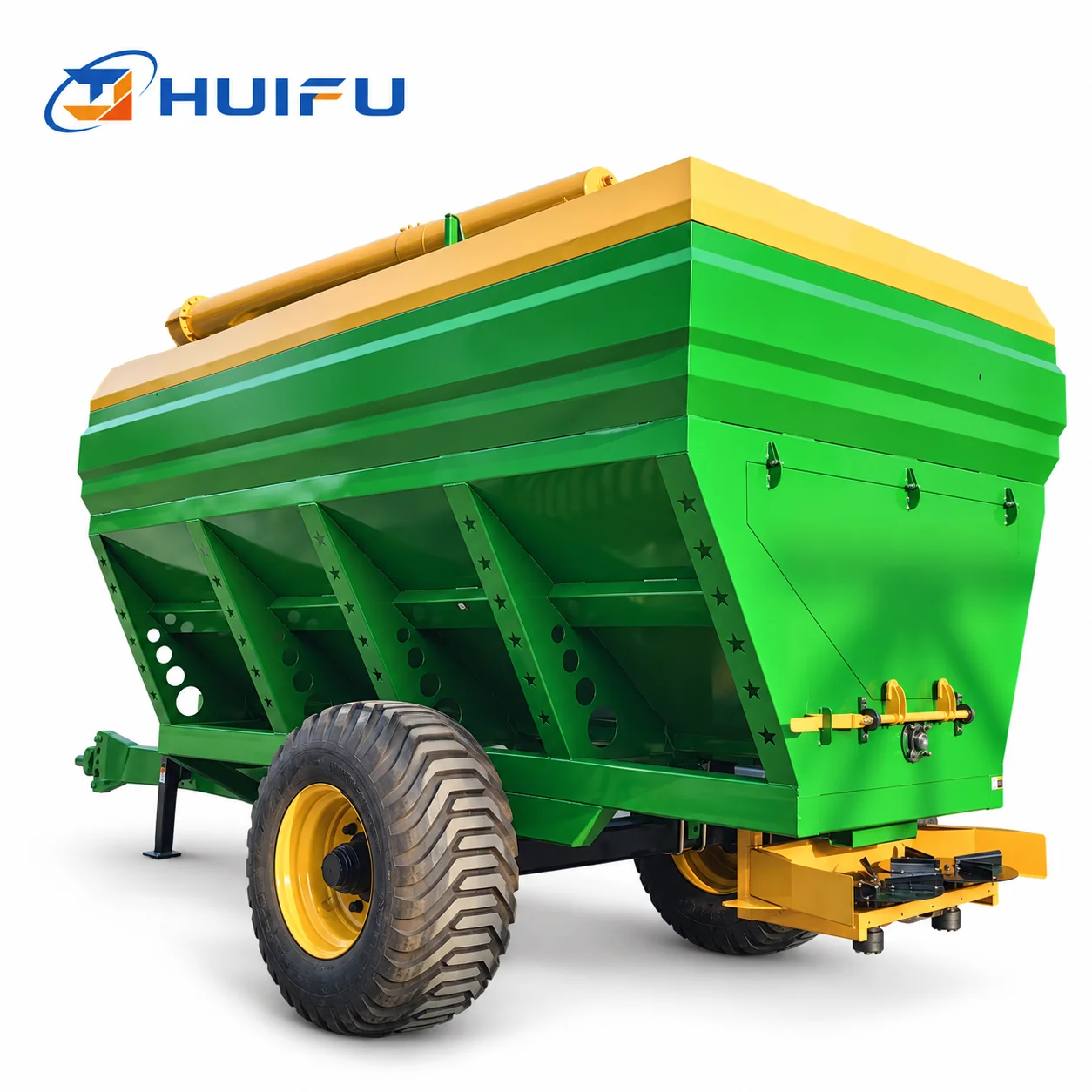

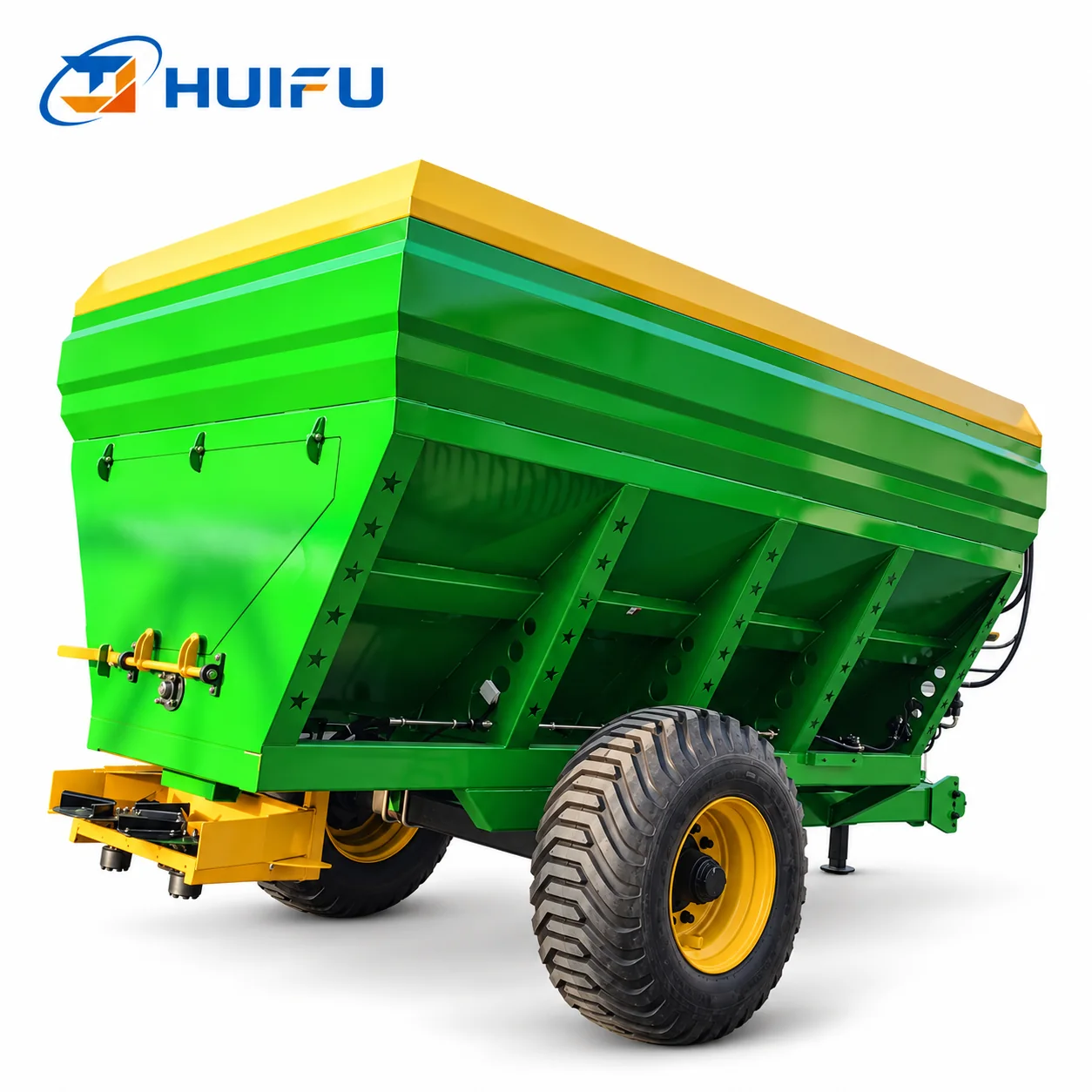

The 10 Cubic Meter Trailed Grain and Fertilizer Transfer Spreader is designed for grain transport, grain unloading, fertilizer transfer and field spreading operations.
The machine uses a large-capacity hopper and a high-discharge auger system. The auger can be raised hydraulically and rotated to the left or right for unloading grain or transferring fertilizer. A rear dual-disc spreading system allows fertilizer to be spread across the field.
It is suitable for large agricultural fields and operations involving granular crops such as rice, wheat, corn and rapeseed, as well as fertilizer transport and spreading.
Key Features and Advantages
10m³ Large-Capacity Hopper
The 10m³ hopper provides increased capacity for grain transport and fertilizer handling, reducing the frequency of loading and unloading during field operations.

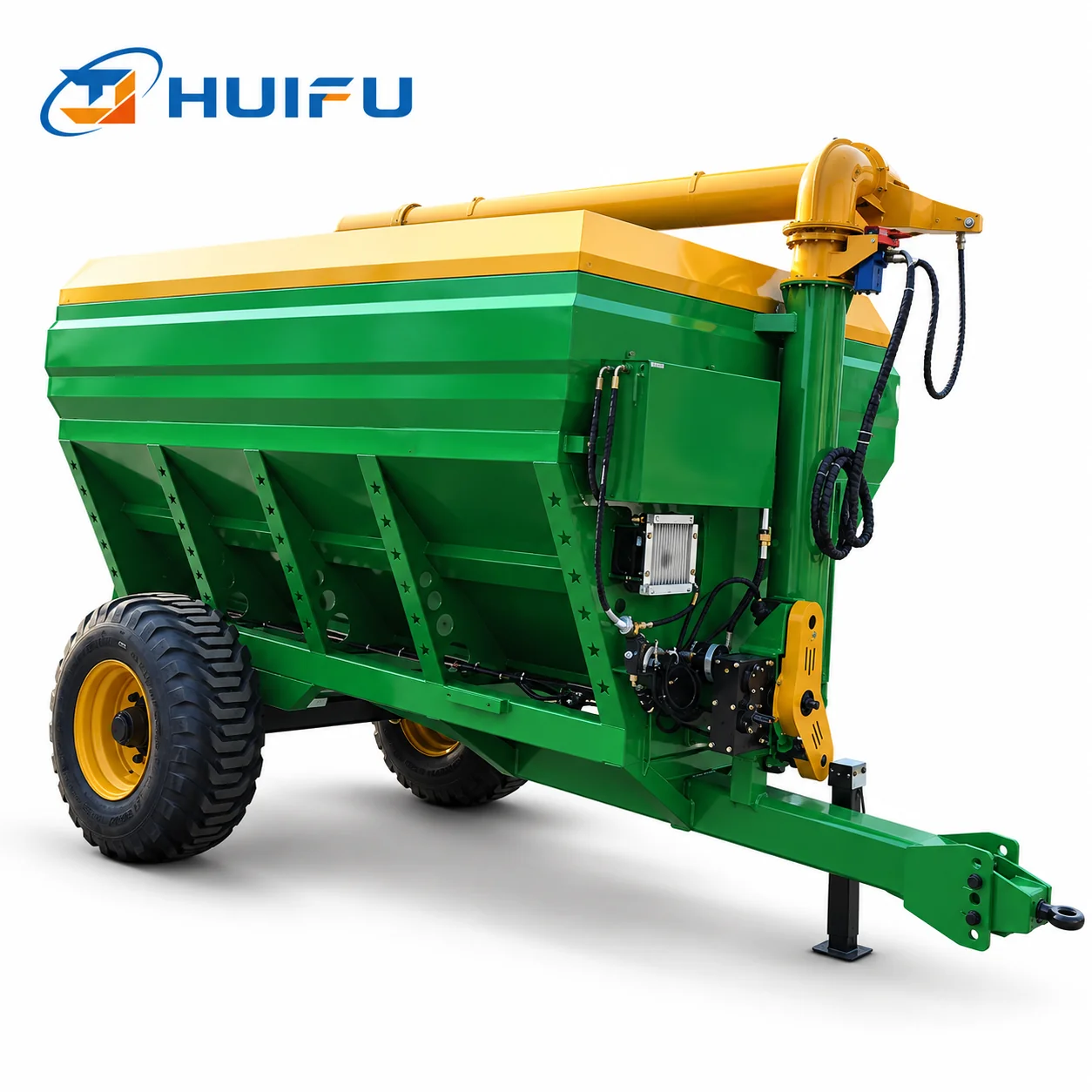

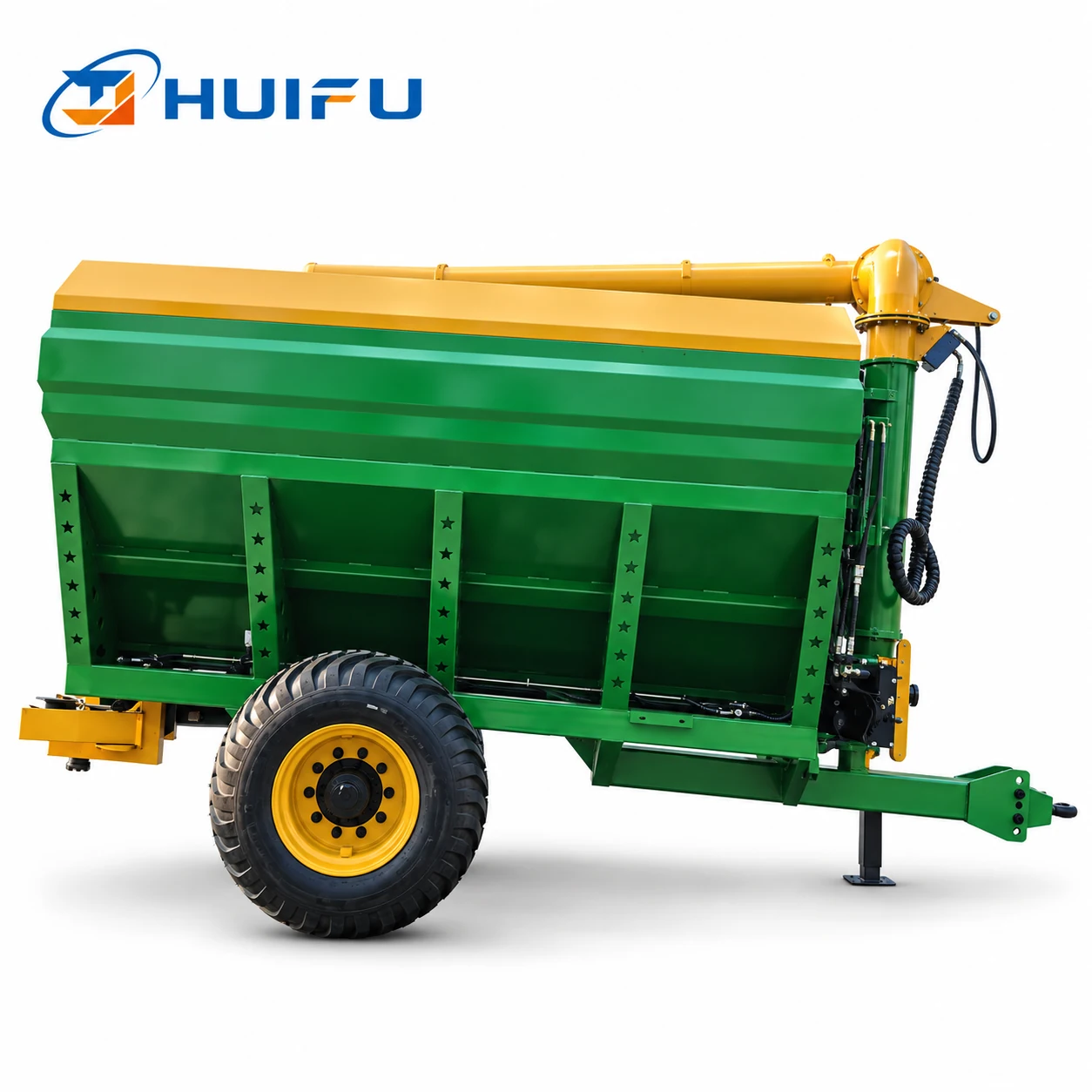

High-Discharge Auger System
The discharge auger provides a lifting height of 5.5m and can rotate 180° to the left and 180° to the right, supporting flexible unloading and fertilizer transfer.
Multi-Function Agricultural Use
The machine combines grain transport, grain unloading, fertilizer transfer and fertilizer spreading in one trailed unit.

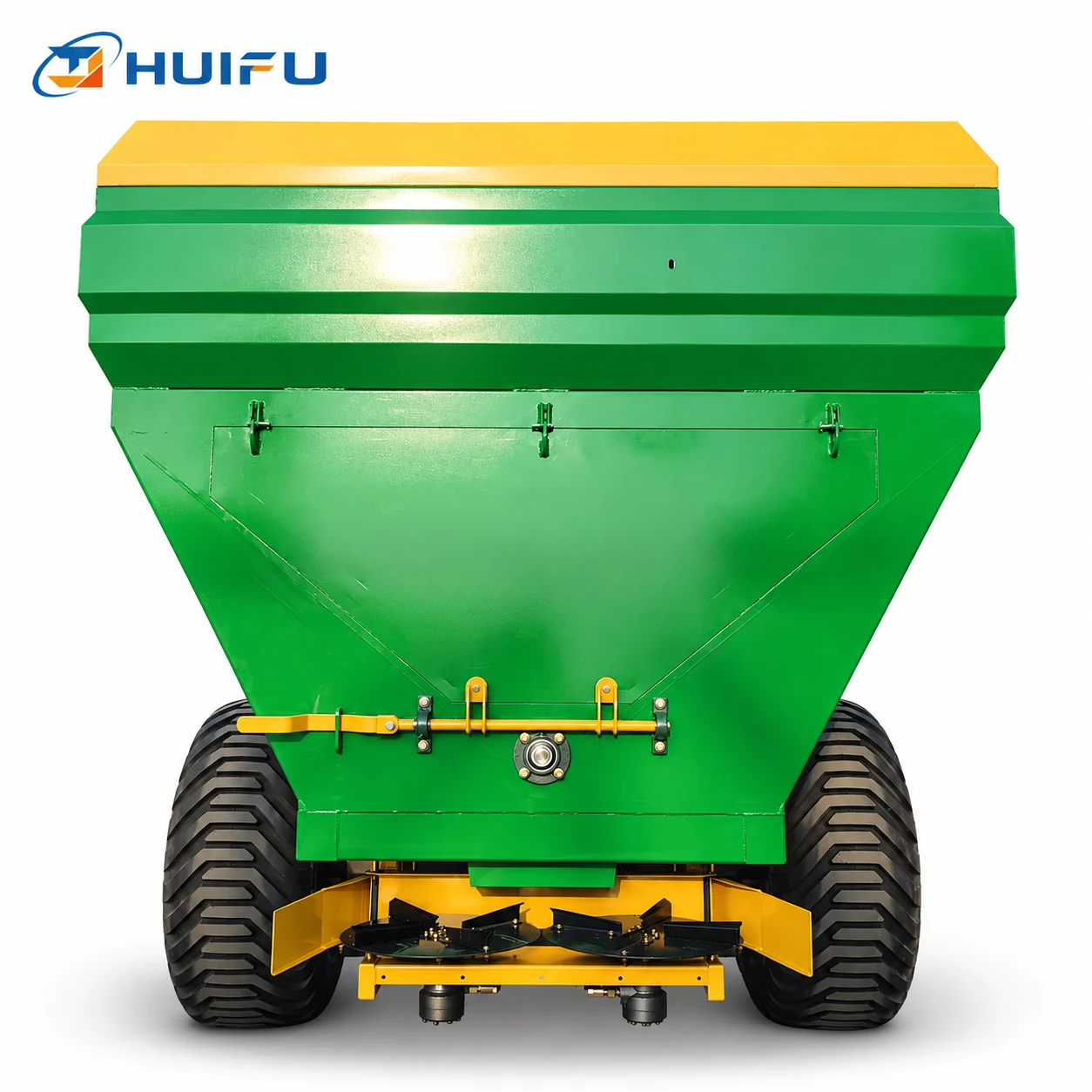

Dual-Disc Fertilizer Spreading
The rear dual-disc spreading system provides a specified spreading width of 6-12m for fertilizer application.
Tractor-Powered Material Conveying
The material conveying system is driven through the tractor output and auger transmission system for grain and fertilizer transfer operations.
Suitable for Large-Field Operations
The machine is designed for agricultural operations where higher-capacity material transport and fertilizer handling are required.
Technical Specifications
| Product Type | Trailed Grain and Fertilizer Transfer Spreader |
|---|---|
| Power Requirement | Above 110HP |
| Overall Dimensions | 6300×2334×30000mm |
| Hopper Volume | 10m³ |
| Maximum Load Capacity | 9600kg |
| Discharge Lifting Height | 5.5m |
| Discharge Rotation | 180° Left / 180° Right |
| Grain Transfer Time | 5 minutes/load |
| Track Width | 1800mm |
| Tire Specification | 400/55-22.5 |
| Number of Tires | 2 |
| Structure Type | Hopper Body |
| Fertilizer Spreading Method | Dual Disc |
| Spreading Width | 6-12m |
Applications
Suitable for:
- – Large agricultural fields
- – Grain transport and transfer operations
- – Fertilizer transfer operations
- – Field fertilizer spreading
Applicable materials:
- – Rice
- – Wheat
- – Corn
- – Rapeseed
- – Fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check tires, braking components, lighting, hydraulic connections, the discharge auger lifting and rotation mechanism, and the material conveying system before operation.
Loading safety
Distribute grain or fertilizer evenly inside the hopper. Do not exceed the rated load capacity to avoid affecting vehicle stability and structural safety.
Discharge operation safety
Before unloading, make sure there are no people or obstacles around the discharge area. Control auger lifting and rotation smoothly and avoid sudden movement.
Material conveying and spreading safety
Monitor material flow during unloading and spreading. If blockage or abnormal operation occurs, stop the system before inspection or cleaning.
Weather precautions
Avoid high-discharge unloading operations in strong winds where material may drift and affect the surrounding area.
Maintenance Recommendations
- – Clean residual grain and fertilizer from the hopper, conveying system and unloading components after operation.
- – Check hydraulic oil condition and oil level regularly.
- – Inspect hydraulic hoses and connections for leakage or damage.
- – Check the auger and conveying system for blockage or abnormal wear.
- – Inspect and tighten fasteners regularly.
- – Clean the tires and chassis after operation in muddy or wet conditions.
- – Store the machine in a dry and ventilated area when not in use.
