Description
Product Overview

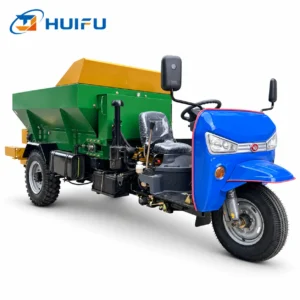

The 3m³ Aoxiang Chassis Manure Spreader is designed for solid fertilizer transportation and spreading operations. The machine adopts a three-wheel chassis structure with an integrated power system, rear dual-disc spreading device and chain board feeding system.
It is suitable for spreading solid materials including manure, organic fertilizer, lime, distiller's grains, sugar residue and granular fertilizer.
Key Features and Advantages
Three-Wheel Chassis Structure
The self-powered three-wheel structure provides convenient operation for agricultural fertilizer spreading work.
Rear Dual-Disc Spreading System
The rear dual-disc spreading device distributes fertilizer during field operations.
Chain Board Feeding System
The chain board pushing system transports materials from the box to the spreading mechanism.
Semi-Enclosed Box Structure
The box structure includes a self-unloading tipping function.
Technical Specifications
| Product Type | Semi-Enclosed Three-Wheel Dual-Disc Manure Spreader |
|---|---|
| Engine | Changchai 35 HP Water-Circulation Engine |
| Overall Dimensions | 5200x1950x2250mm |
| Box Dimensions | 2570×1600/960x1350mm |
| Box Volume | 3m³ |
| Maximum Load Capacity | 4000kg |
| Spreading Device Type | Rear Dual Disc |
| Material Feeding System | Chain Board Pushing |
| Spreading Width | 6-12m |
| Brake System | Air Brake |
| Tire Specifications | Front 650-16; Rear 700-16 |
| Number of Tires | 5 |
| Operating Method | Rear Spreading |
| Structure Type | Box Body with Self-Unloading Tipping Function |
Applications
Suitable for:
- Livestock farms
- Agricultural fields
- Orchards
- Greenhouses
- Pastures
Applicable materials:
- Manure
- Organic fertilizer
- Lime
- Distiller's grains
- Sugar residue
- Granular fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check the vehicle structure, tires, engine system and spreading components before operation.
Loading and transportation safety
Do not exceed the rated load capacity. Load materials evenly and drive carefully during transportation.
Operating safety
Ensure no people or obstacles are nearby before starting the spreading device. Adjust spreading parameters according to material conditions.
Maintenance precautions
Clean fertilizer residue after operation and regularly inspect spreading components and transmission parts.
Maintenance Recommendations
- Clean remaining fertilizer after each use.
- Lubricate rotating components regularly.
- Check wear parts and replace when necessary.
- Store the machine in a dry and ventilated area during long-term storage.
