Description
Product Overview

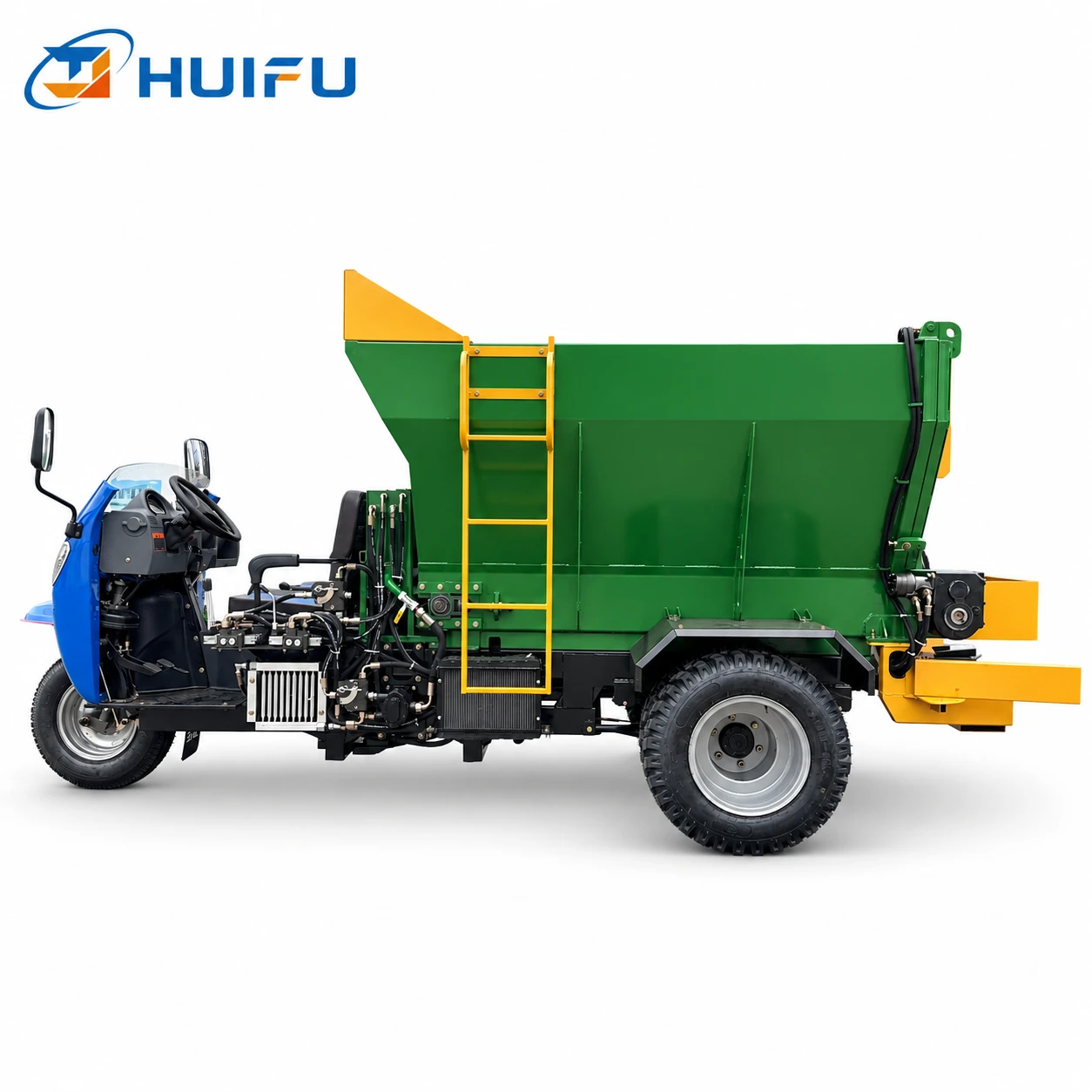

The 3m³ Xiangyunhu Chassis Manure Spreader is designed for solid material transportation and spreading operations in agricultural applications.
The machine adopts a three-wheel chassis structure with an independent power system. It combines a material loading box, chain board feeding system and rear dual-disc spreading device to support fertilizer transportation and field spreading operations.
It is suitable for handling and spreading solid materials such as livestock manure, organic fertilizer, lime, distiller’s grains, sugar residue and granular fertilizer in agricultural fields, livestock farms, orchards and other supported application environments.
Key Features and Advantages

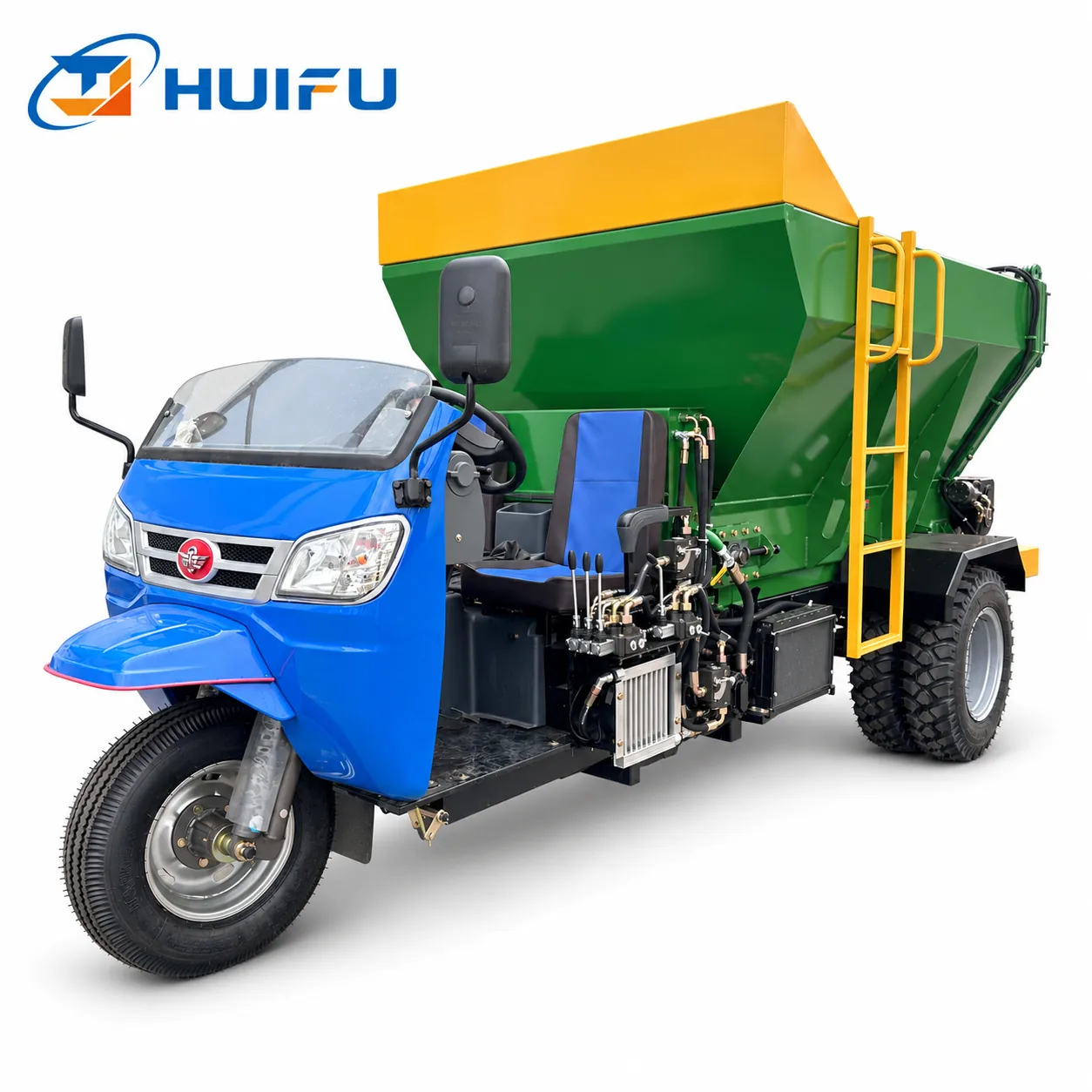

Three-Wheel Chassis Structure
The three-wheel chassis design provides an integrated structure with its own power system, allowing convenient transportation and spreading operations.

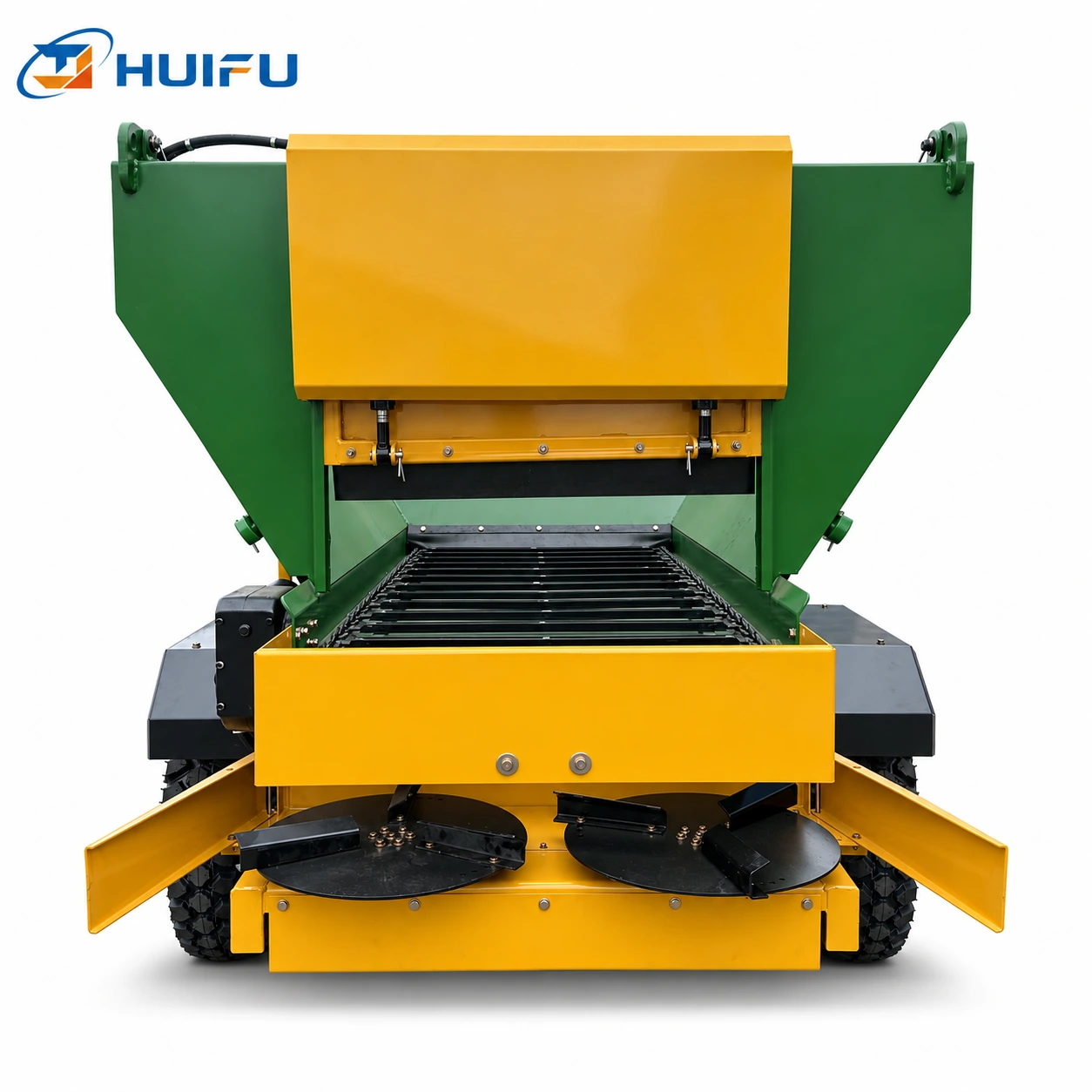

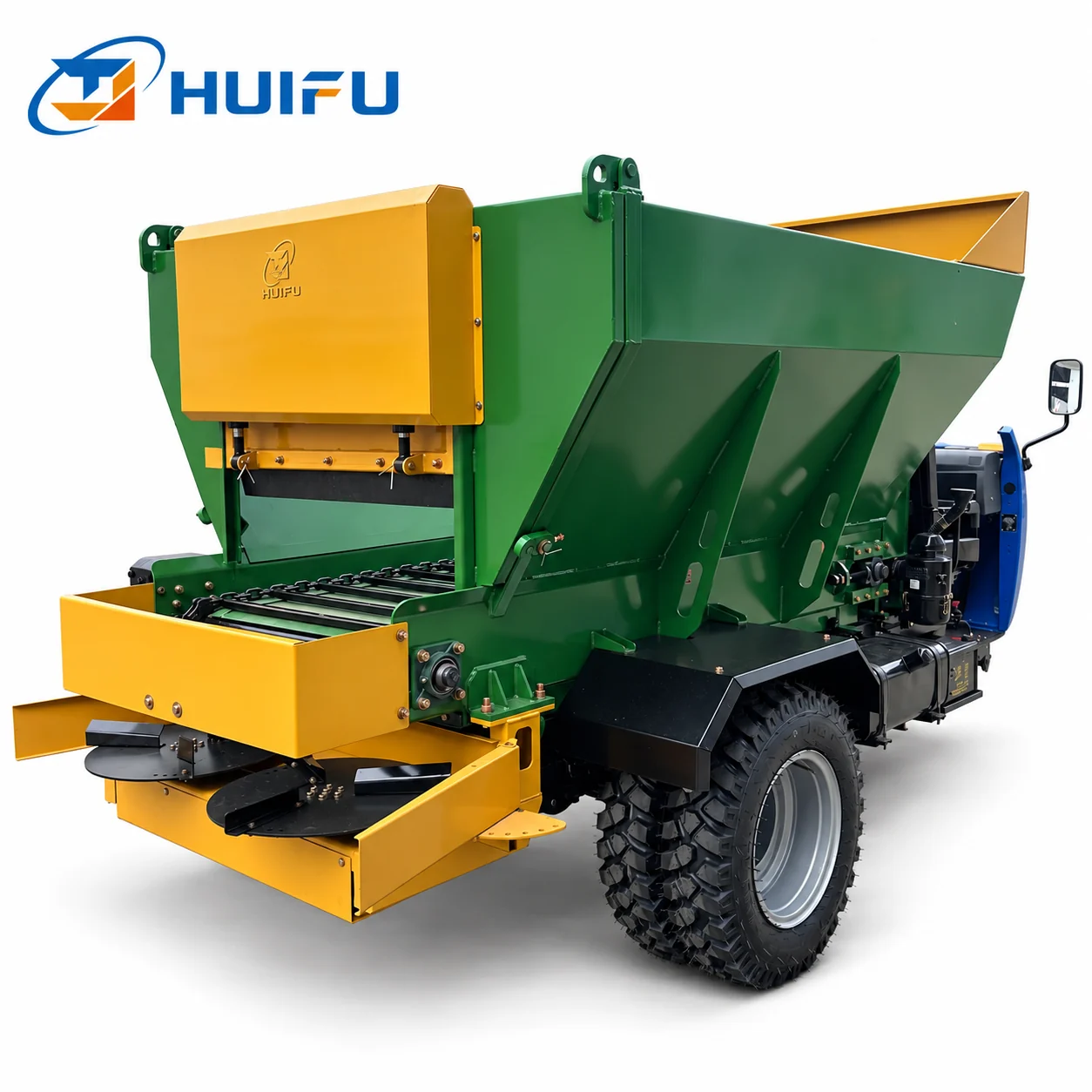

Rear Dual-Disc Spreading System
The rear-mounted dual-disc spreading device distributes solid materials during field application.
Chain Board Feeding System
The chain board pushing system transports materials from the loading box to the spreading mechanism.
Multi-Function Working Structure
The machine combines fertilizer transportation and spreading functions. The box structure is equipped with a self-unloading tipping function.
Adjustable Spreading Operation
The spreading width can be adjusted according to operating requirements and material conditions.
Suitable for Various Solid Materials
The machine can be used for spreading manure, organic fertilizer, lime, distiller’s grains, sugar residue and granular fertilizer.
Technical Specifications
| Product Type | Three-Wheel Manure Spreader |
|---|---|
| Chassis | Wuzheng Chariot Tiger Three-Wheel Chassis |
| Engine | Changchai 35 HP Water-Circulation Engine |
| Overall Dimensions | 4600x1900x1920mm |
| Box Dimensions | 2300x1700x1000mm |
| Box Volume | 3m³ |
| Maximum Load Capacity | 4000kg |
| Spreading Device Type | Rear Dual Disc Spreader |
| Material Feeding System | Chain Board Pushing System |
| Spreading Width | 6-12m |
| Brake System | Vacuum Assisted Braking |
| Tire Specifications | Front 600-16; Rear 700-16 |
| Number of Tires | 5 |
| Operating Method | Rear Spreading |
| Structure Type | Box Body with Self-Unloading Tipping Function |
Applications
Suitable for:
- Livestock farms
- Agricultural fields
- Orchards
- Greenhouses
- Pastures
Applicable materials:
- Livestock manure
- Farmyard manure
- Organic fertilizer
- Lime
- Distiller’s grains
- Sugar residue
- Granular fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check the vehicle structure, tires, power system, transmission components and spreading device before operation. Make sure all components are in normal working condition.
Loading and transportation safety
Do not exceed the rated load capacity. Distribute materials evenly inside the box to maintain balance during transportation. Avoid sudden braking and sharp turns.
Operating safety
Before starting the spreading device, ensure that there are no people or obstacles nearby. Monitor spreading conditions during operation and stop for inspection if abnormal conditions occur.
Maintenance precautions
Clean remaining fertilizer after operation. Avoid water entering electrical components and important transmission parts during cleaning.
Maintenance Recommendations
- Clean fertilizer residue from the machine after each use to reduce corrosion risk.
- Lubricate rotating components regularly according to operating conditions.
- Check spreading components and other wear parts regularly.
- Keep the machine in a dry and ventilated storage area during long-term storage.
