Description
Product Overview

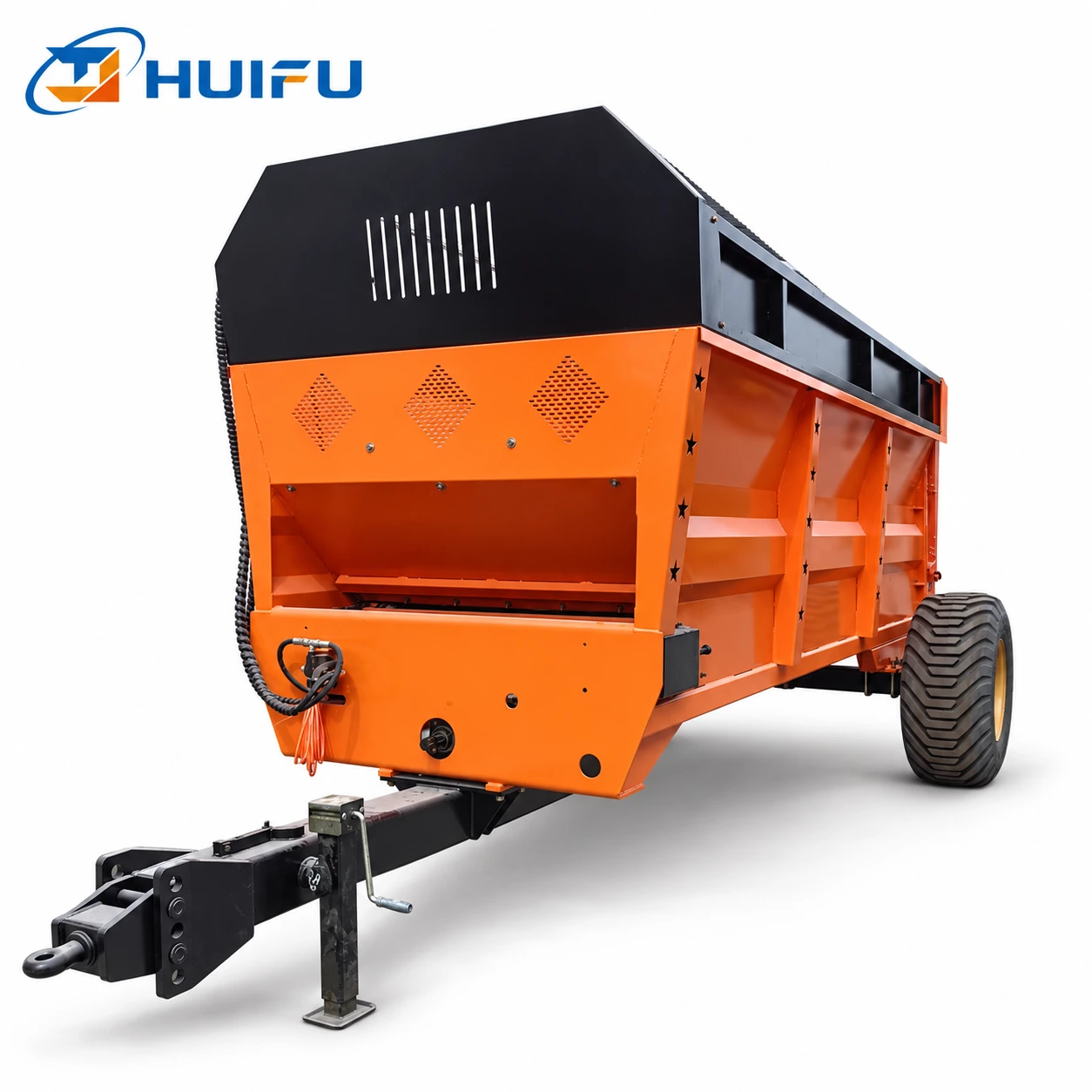

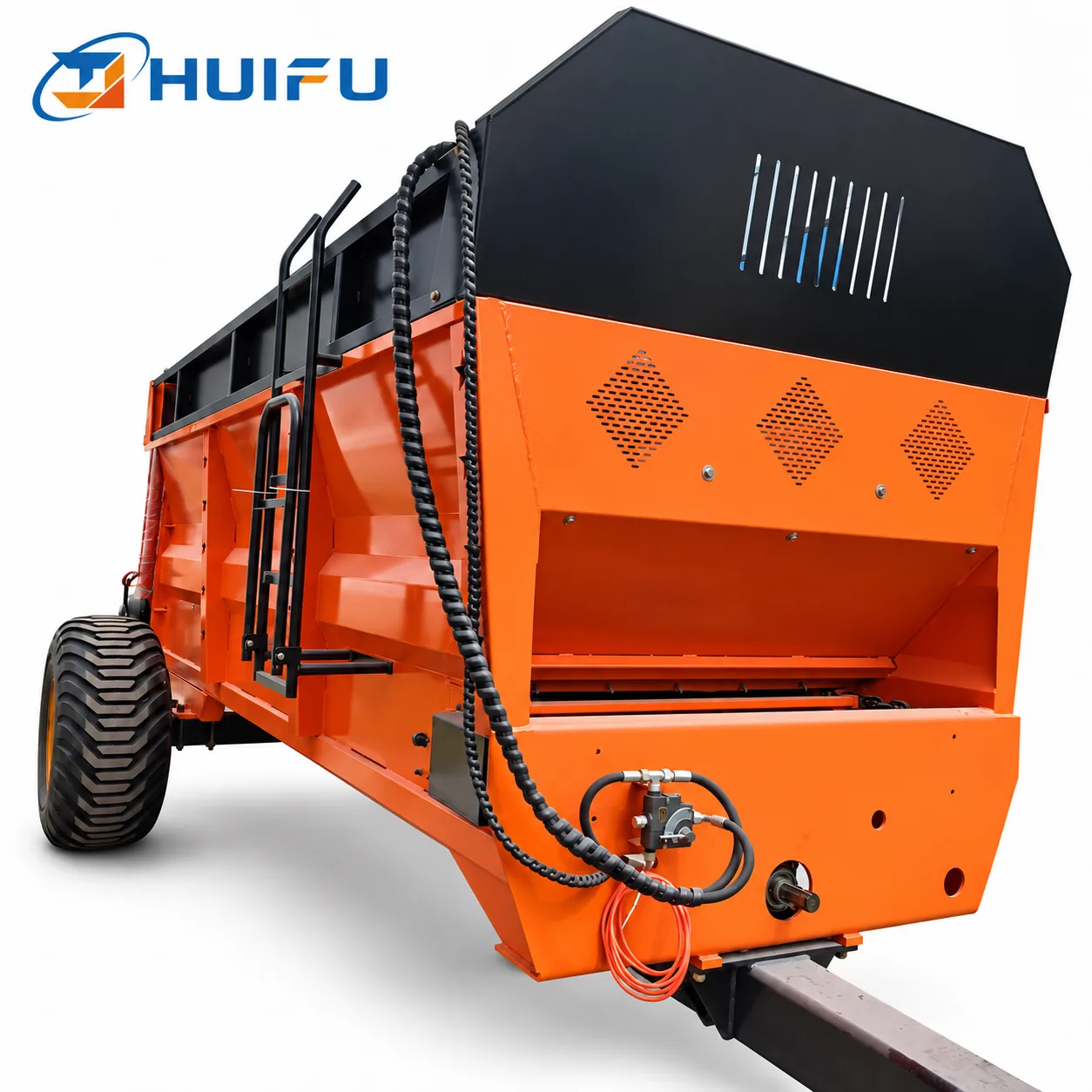

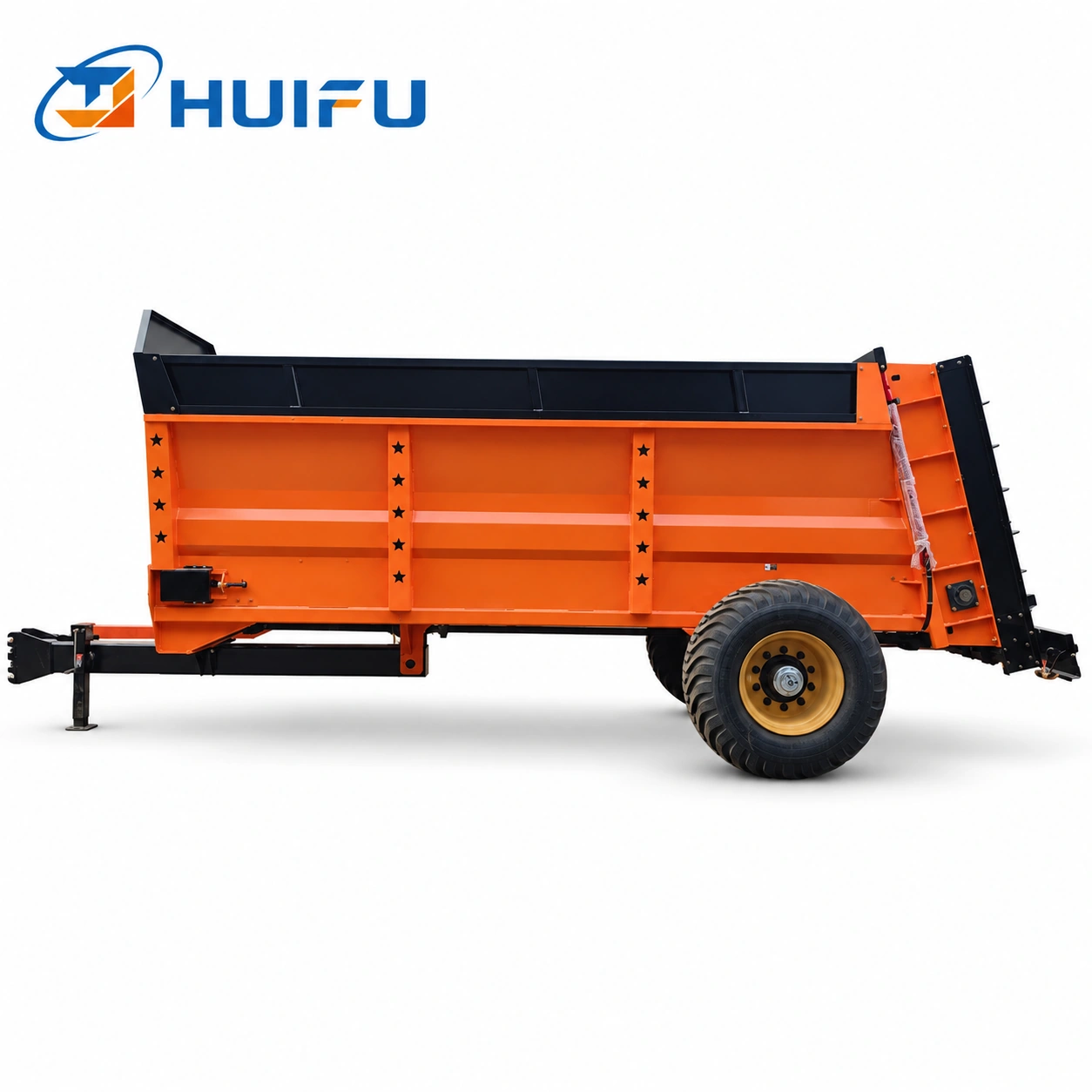

The 10m³ Twin Vertical Auger Manure Spreader is designed for spreading solid agricultural materials in field operations. It is tractor-trailed and uses a hydraulic-powered material feeding system together with a rear-mounted twin vertical auger spreading mechanism.
During operation, the conveyor chain moves material toward the rear of the hopper. The twin vertical augers break up and spread the material, while the feeding speed can be adjusted through a flow-control valve to match different spreading requirements. The machine is suitable for large farms, ranches, grasslands and other supported agricultural applications.
Key Features and Advantages
Twin Vertical Auger Spreading System

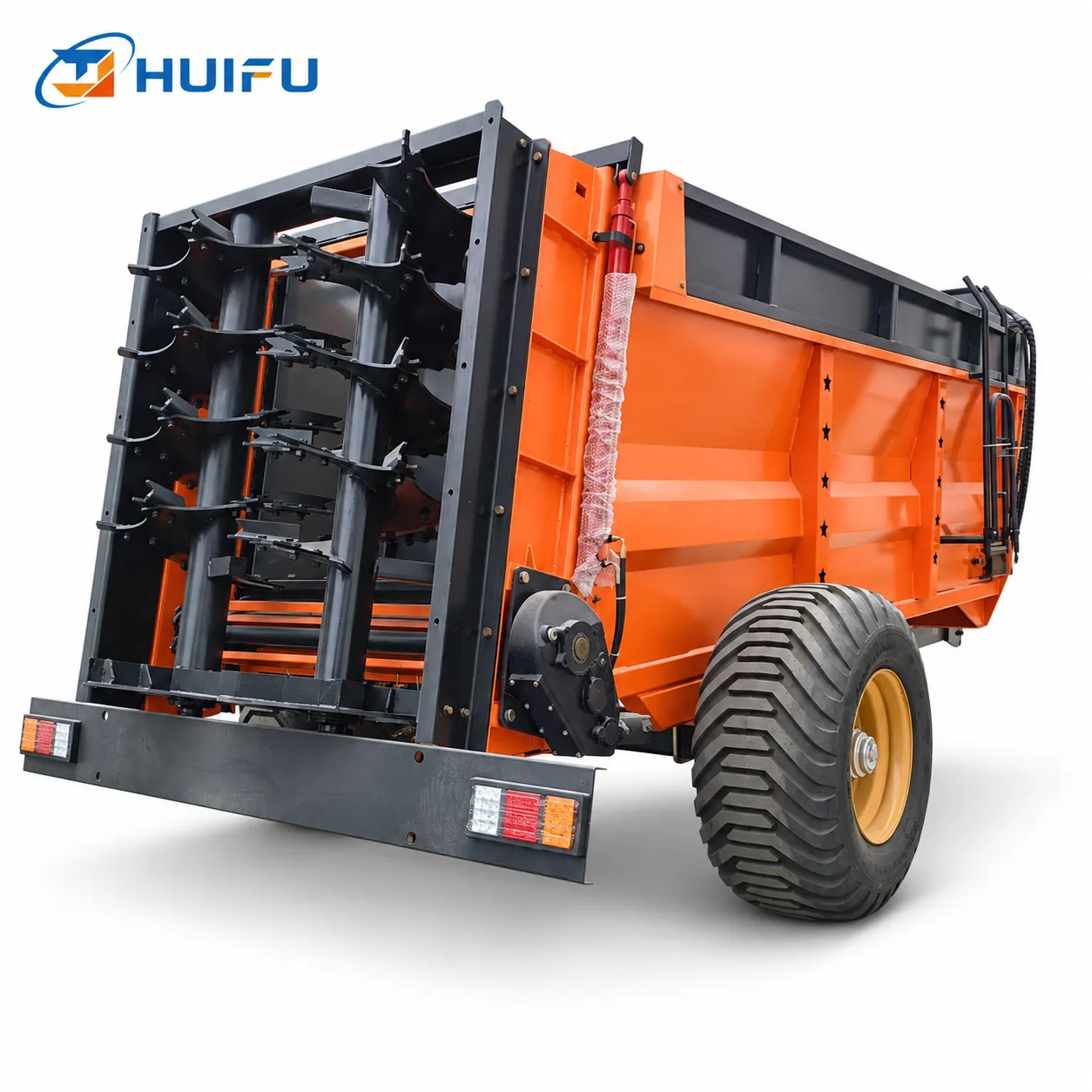

The rear-mounted twin vertical augers break up and spread materials such as dry or wet manure, lumpy manure, organic fertilizer and granular fertilizer. The auger blade arrangement is designed to support material breakup and spreading.
Hydraulic-Powered Material Feeding
The feeding system is driven by the tractor hydraulic output. A conveyor chain automatically moves material toward the rear spreading unit, and the feeding speed can be adjusted through a flow-control valve.
Adjustable Spreading Operation
Spreading settings can be adjusted according to material condition and application requirements. The product specification lists a spreading width of 8-16m.

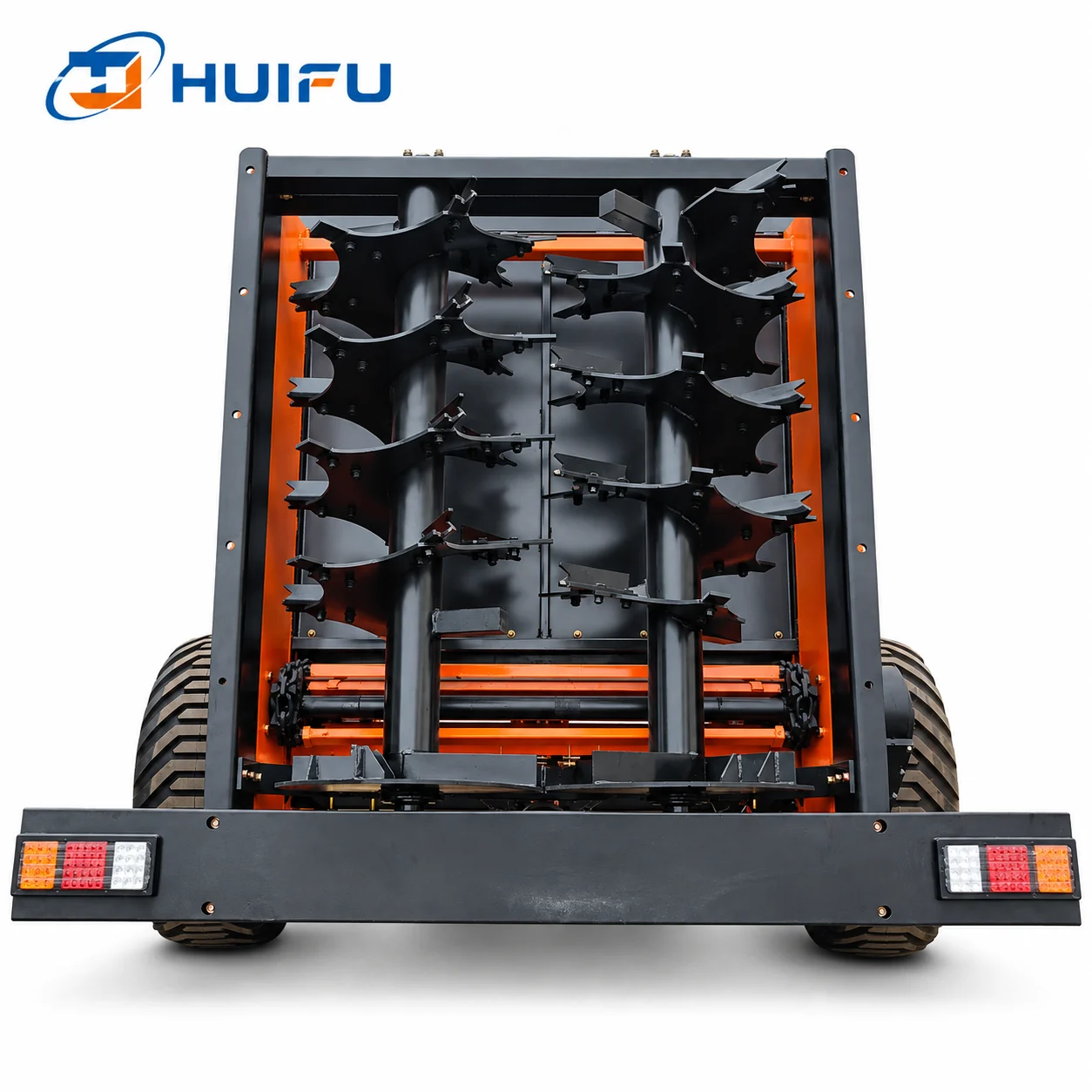

48 High-Manganese-Steel Auger Blades
The twin vertical auger system uses 48 auger blades made of high-manganese steel. The source material also states that the blades are arranged in a stepped pattern and are replaceable.
High-Strength Carbon Steel Hopper
The hopper is made of high-strength carbon steel for agricultural spreading applications.
Five-Stage Paint Surface Treatment
The specified paint process includes shot blasting, sandblasting, abrasive blasting, primer and topcoat treatment.
Suitable for Different Material Conditions
The machine can handle supported materials including dry and wet manure, lumpy manure, organic fertilizer, granular fertilizer, sand and lime.
Technical Specifications
| Product Type | Hydraulic Trailed Twin Vertical Auger Manure Spreader |
|---|---|
| Required Tractor Power | 100HP or above |
| Overall Dimensions | 7500x2900x2650mm |
| Hopper Volume | 10m³ |
| Spreading Device Type | Rear-mounted twin vertical auger |
| Material Feeding Method | Chain plate pushing |
| Spreading Width | 8-16m |
| Number of Auger Blades | 48 blades, high-manganese steel |
| Brake System | Air brake |
| Tire Specification | 500/60-22.5 |
| Track Width | 2350mm |
| Number of Tires | 2 |
| Number of Axles | 1 |
| Operating Method | Rear spreading |
| Hopper Material | High-strength carbon steel |
| Paint Surface Treatment | Shot blasting, sandblasting, abrasive blasting, primer and topcoat; five-stage process |
Applications
Suitable for:
Large farms
Ranches
Grasslands
Applicable materials:
Dry manure
Wet manure
Lumpy manure
Livestock manure
Organic fertilizer
Granular fertilizer
Compound fertilizer
Sand
Lime
Operation Instructions and Safety Notes
Pre-operation inspection
Check the connection between the spreader and tractor, including the hitch and drawbar, for damage, deformation or looseness. Check tire pressure, tire wear and the chassis for damage. Inspect hydraulic hoses and valves for secure connections and leakage. Confirm that the hydraulic drive can operate the vertical augers and conveyor chain. Check the augers, blades, conveyor chain, discharge gate and adjustment components before operation.
Loading and transportation safety
Avoid overloading the spreader or exceeding the working load of the conveyor chain and vertical augers. Ensure the tractor-spreader connection is secure before moving the machine.
Operating safety
Control tractor travel speed according to material type, required application rate and spreading conditions. Adjust vertical auger speed, conveyor-chain speed and discharge-gate opening according to the fertilizer condition and spreading requirement. Observe the spreading result during operation and adjust settings when necessary.
Maintenance precautions
After each operation, remove material remaining in the hopper, on the vertical augers and on the conveyor chain. Water may be used for cleaning, but avoid allowing water to enter electrical components and key transmission components.
Maintenance Recommendations
- Clean residual fertilizer from the hopper, vertical augers and conveyor chain after each spreading operation.
- Inspect the vertical auger blades, conveyor chain and gearbox regularly for wear, and replace seriously worn components when necessary.
- Keep hydraulic connections and valves in good condition and check for leakage before use.
- For long-term storage, keep the spreader in a dry, well-ventilated place to reduce the risk of moisture and rust.
- Release pressure from the hydraulic system before long-term storage.
