Description
Product Overview

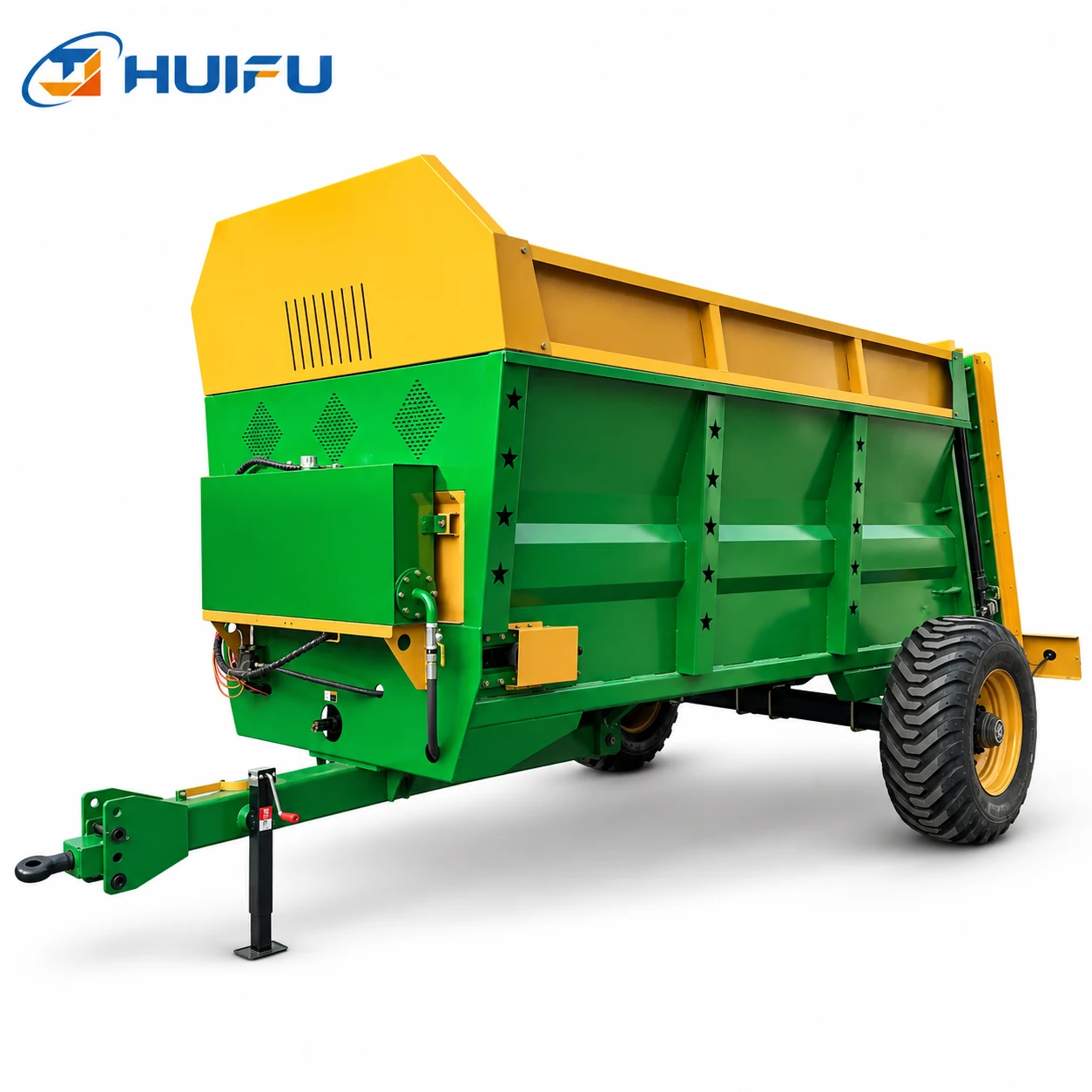

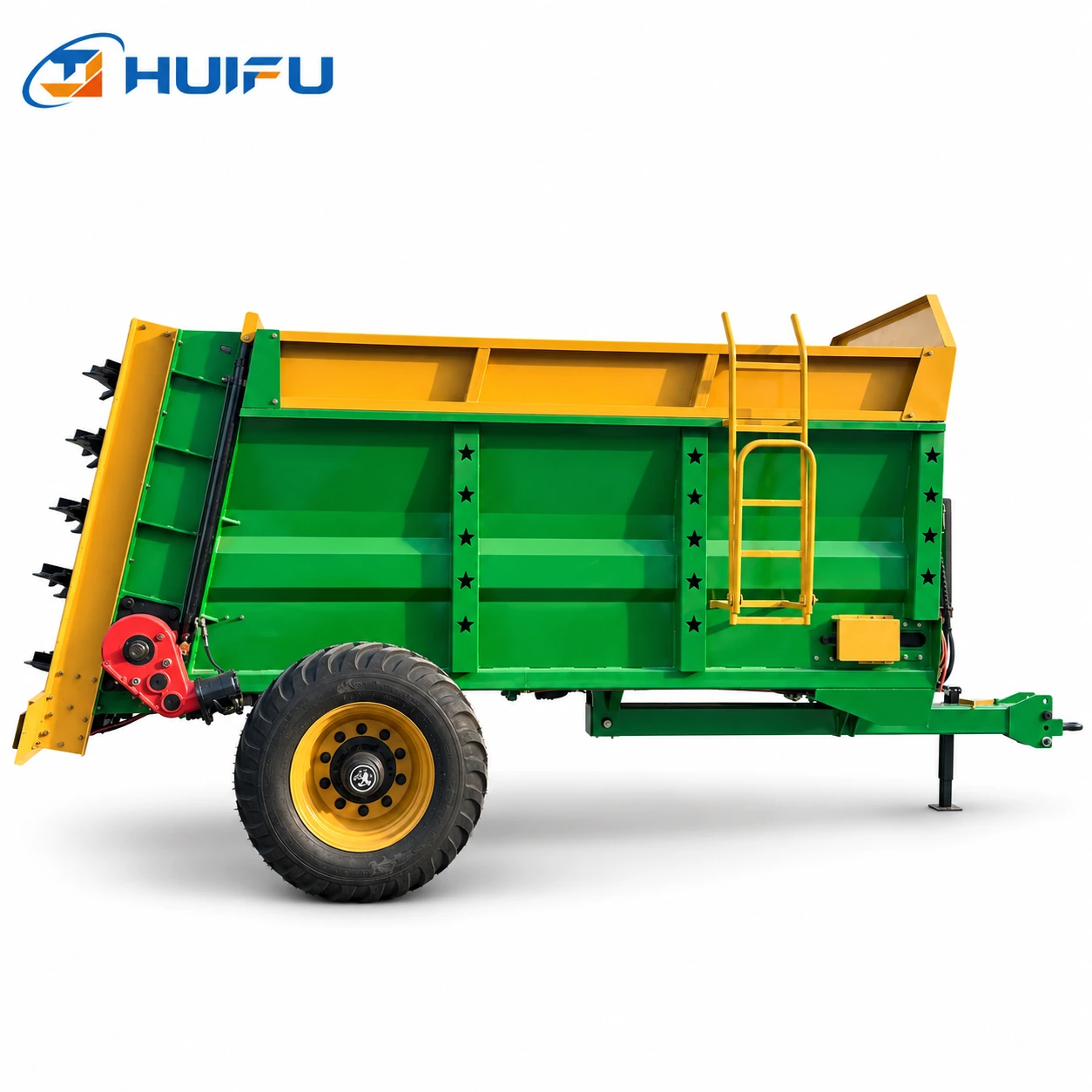

The 8 m³ Hydraulic Trailed Twin Vertical Auger Manure Spreader is designed for transporting, breaking up and spreading solid agricultural materials. It is tractor-trailed and uses a twin vertical auger spreading system at the rear. The fertilizer conveying system is driven by the tractor hydraulic output, while the internal conveyor chain moves material toward the spreading unit.
The machine is suitable for dry and wet manure, lumpy manure, organic fertilizer, granular fertilizer, sand and lime. It is intended for applications such as large farms, pastures and grassland, where controlled material feeding and wide-area spreading are required.
Key Features and Advantages
Twin Vertical Auger Spreading System

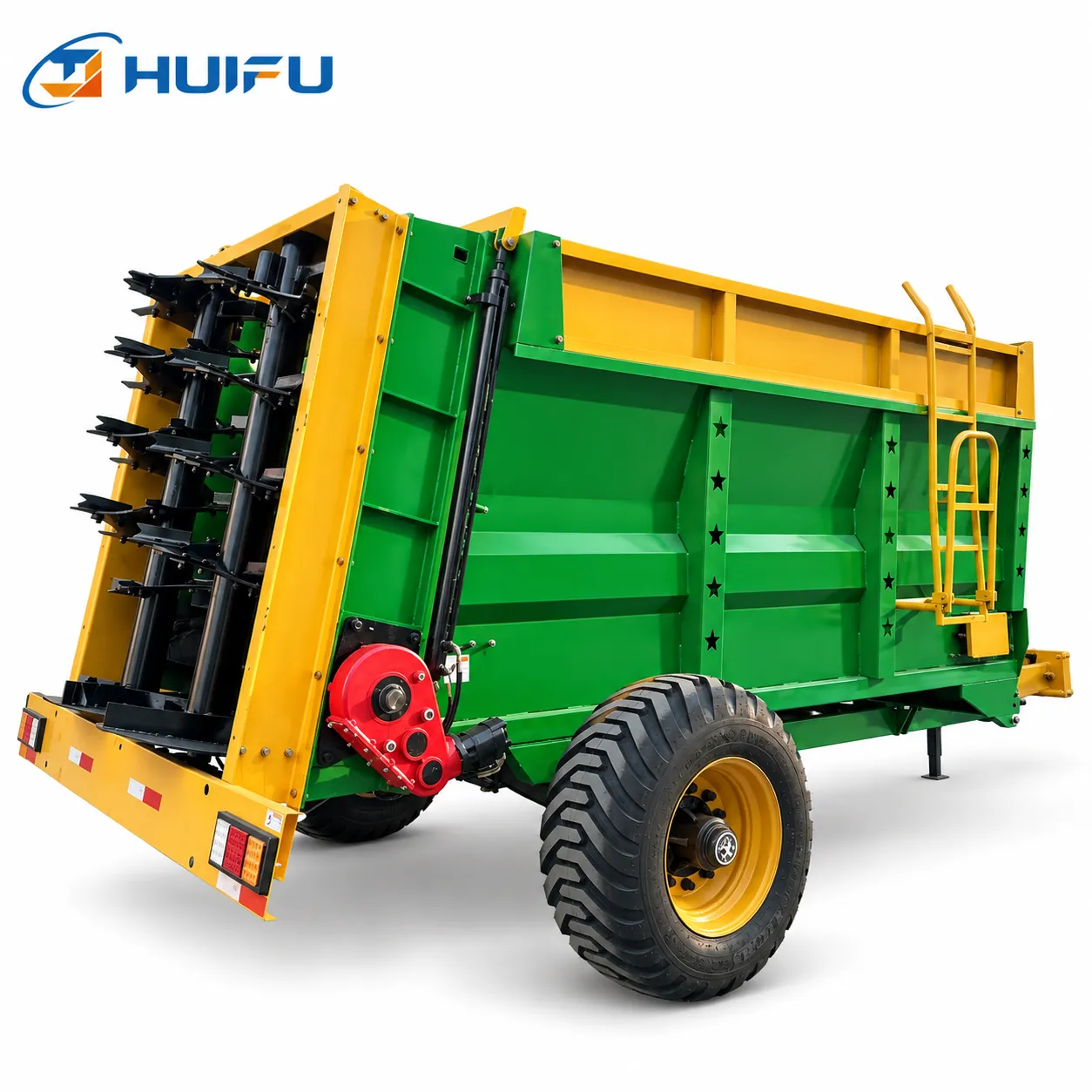

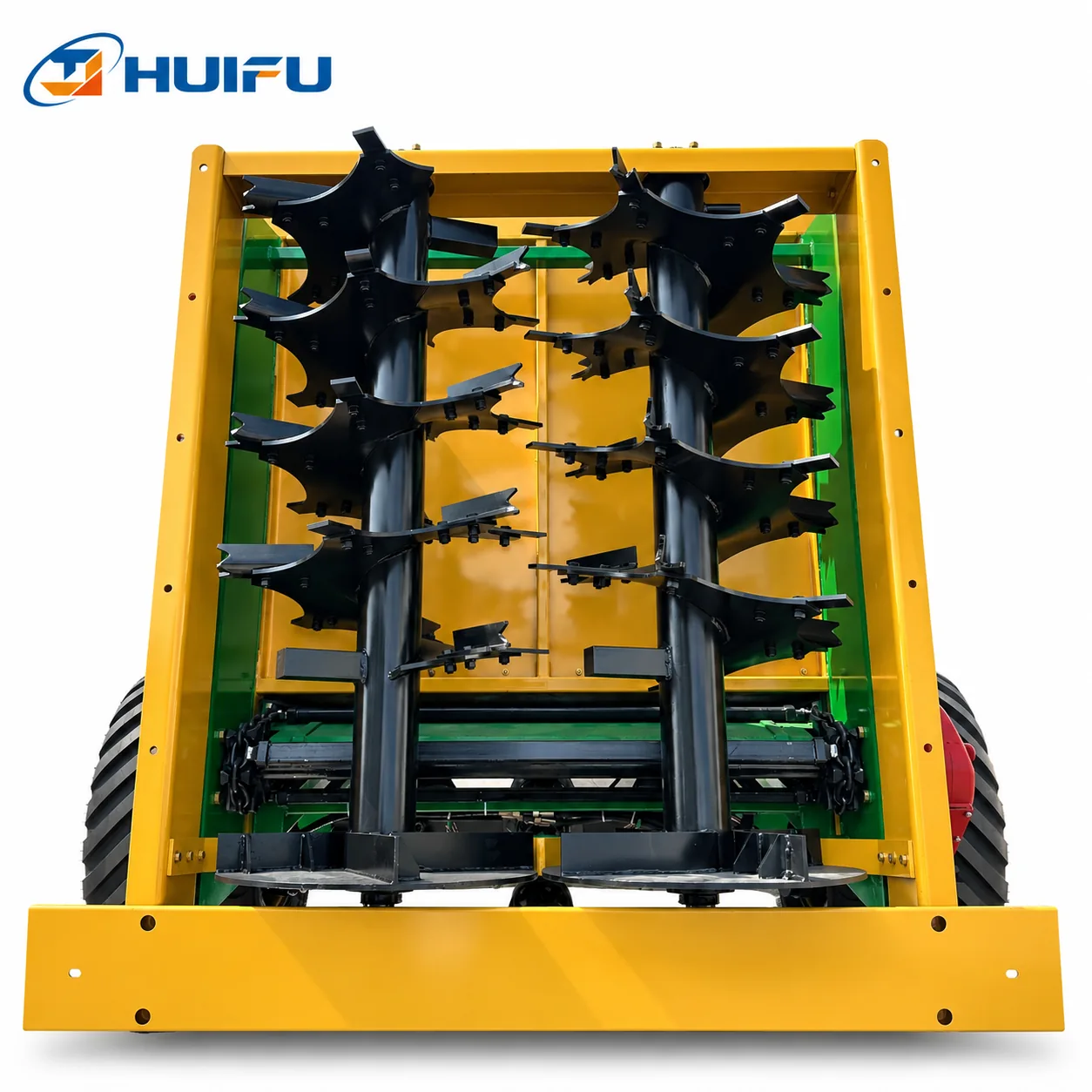

The rear-mounted twin vertical augers break up material and spread it to the rear. The stepped arrangement of the auger blades supports more even material breakup and makes blade replacement convenient.
Tractor Hydraulic-Powered Material Feeding
The fertilizer conveying system is driven by the tractor hydraulic output. The internal conveyor chain moves material toward the rear, and the conveying speed can be adjusted through the speed control valve.
Adjustable Material Discharge
A large-flow discharge gate and speed control valve allow the operator to adjust material output according to different spreading requirements.
High-Manganese-Steel Auger Blades
The spreading unit is equipped with 48 auger blades made from high-manganese steel.
High-Strength Carbon Steel Hopper
The hopper is made from high-strength carbon steel for agricultural spreading operations.
Multi-Stage Surface Treatment
The specified paint surface treatment includes shot blasting, sandblasting, abrasive blasting, primer and topcoat processes.
Suitable for Different Material Conditions
The machine can handle dry and wet manure, lumpy manure, organic fertilizer, granular fertilizer, sand and lime, supporting different agricultural spreading applications.
Technical Specifications
| Model | 2FGH-8 |
|---|---|
| Product Type | Trailed Twin Vertical Auger Manure Spreader |
| Required Tractor Power | 80HP or above |
| Overall Dimensions | 6500x2600x2700mm |
| Hopper Volume | 8m³ |
| Spreading Device Type | Rear-mounted twin vertical auger |
| Fertilizer Feeding Method | Chain plate pushing |
| Spreading Width | 8-16m |
| Number of Auger Blades | 48 blades, high-manganese steel |
| Tire Specification | 400/50-22.5 |
| Track Width | 2050mm |
| Number of Tires | 2 |
| Number of Axles | 1 |
| Operating Method | Rear spreading |
| Hopper Material | High-strength carbon steel |
| Paint Surface Treatment | Shot blasting, sandblasting, abrasive blasting, primer and topcoat; five-process treatment |
Applications
Suitable for:
Large farms
Pastures
Grassland
Applicable materials:
Dry and wet manure
Lumpy manure
Organic fertilizer
Granular fertilizer
Sand
Lime
Operation Instructions and Safety Notes
Pre-operation inspection
Check the connection between the spreader and tractor, including the hitch and drawbar, for damage, deformation or looseness. Check tire pressure, tire wear and chassis condition. Inspect the hydraulic transmission system for secure hose connections and leaks, and confirm that valves operate normally. Check the vertical augers, auger blades, conveyor chain, discharge gate and adjustment mechanisms before operation.
Loading and transportation safety
Avoid operating above the rated loading and working limits of the spreader, conveyor chain and vertical auger system. Overloading may affect vehicle movement, spreading consistency and component condition.
Operating safety
Control tractor travel speed according to the fertilizer type, application rate and spreading conditions. Adjust vertical auger speed, conveyor-chain speed and discharge-gate opening according to material characteristics and the required spreading result. Observe spreading performance during operation and make adjustments as needed.
Maintenance precautions
After operation, remove residual material from the hopper, vertical augers and conveyor chain. Water may be used for cleaning, but avoid allowing water to enter electrical components and key transmission parts. Release hydraulic system pressure before long-term storage.
Maintenance Recommendations
- Clean residual fertilizer from the hopper, vertical augers and conveyor chain after each spreading operation to reduce corrosion.
- Inspect the vertical auger blades, conveyor chain and gearbox regularly for wear, and replace severely worn parts when necessary.
- Check hydraulic hoses, connections and valves regularly and keep the system free from leakage.
- Store the spreader in a dry, well-ventilated location during long periods of non-use.
- Release hydraulic system pressure before long-term storage.
