Description
Product Overview

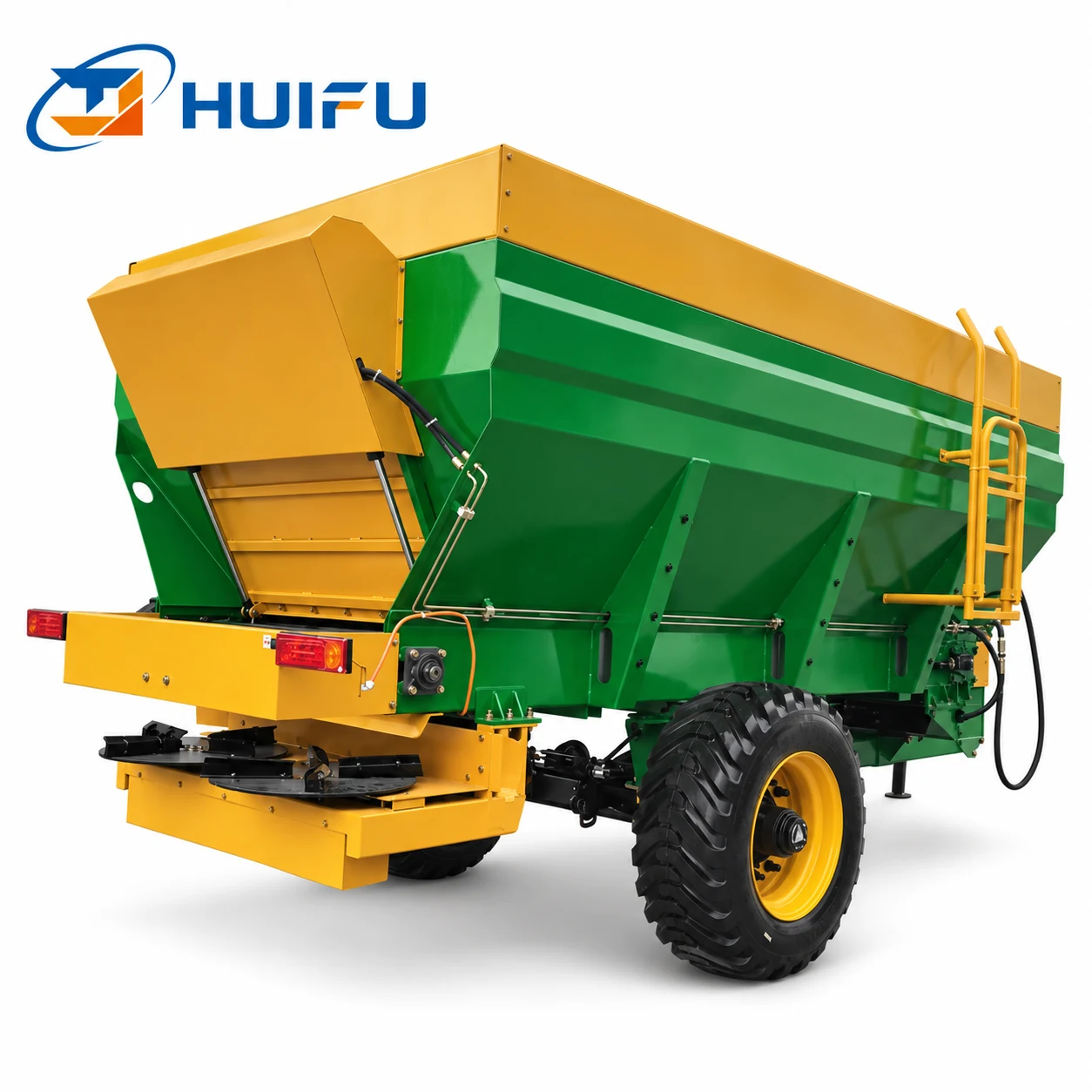

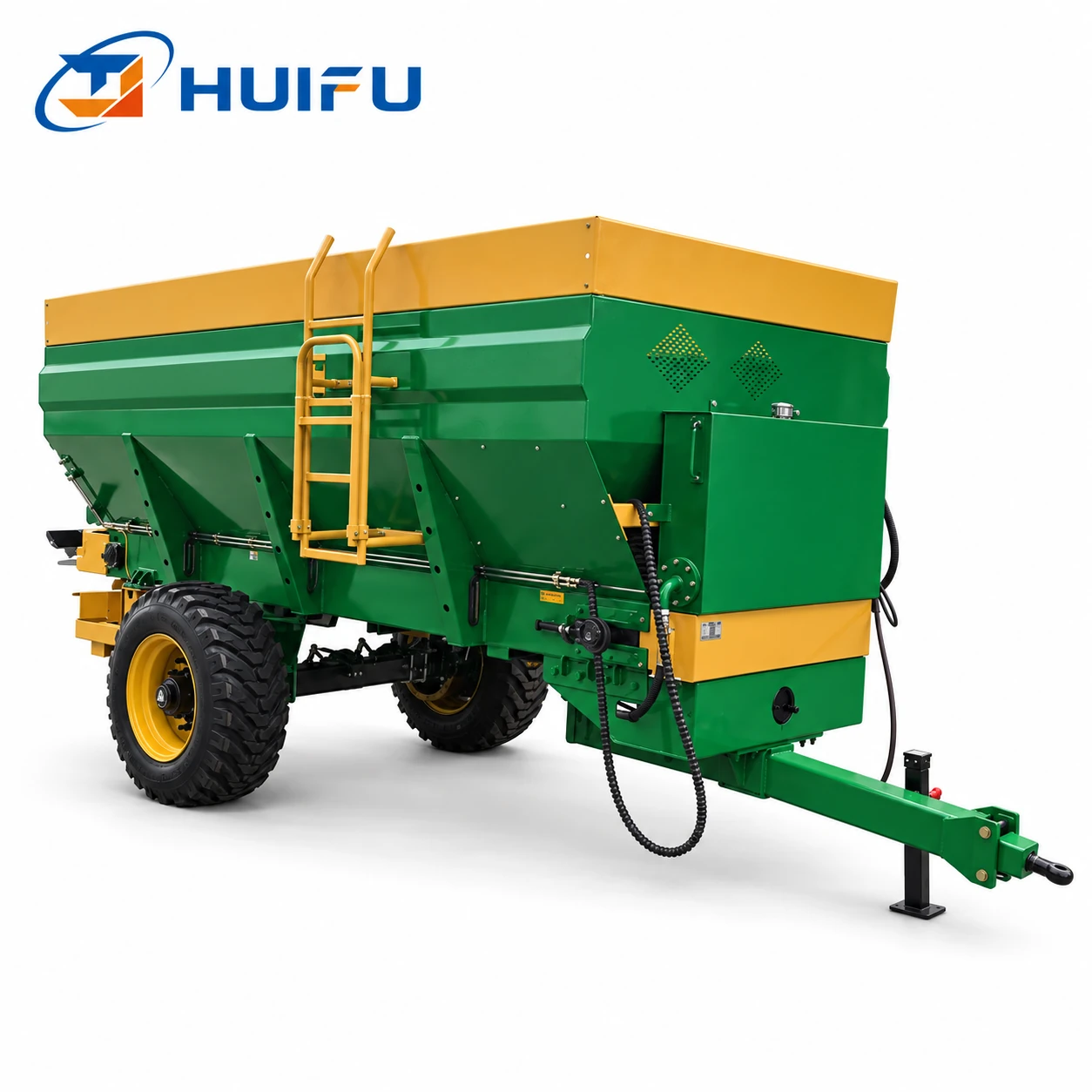

The 10 Cubic Meter Hydraulic Trailed Dual-Disc Manure Spreader is designed for spreading solid fertilizers across agricultural fields. It is a tractor-towed machine with a 10 m³ material box, rear dual-disc spreading device and chain plate feeding system.
During operation, material is pushed toward the rear spreading unit and distributed by the rotating discs. The spreading width is 6-12m, and the machine is matched with tractors of 100HP or above.
The spreader can be used with solid fertilizers including livestock manure, organic fertilizer and compound fertilizer, supporting mechanized fertilizer application for farms and planting operations.
Key Features and Advantages
10 m³ Material Capacity
The 10 m³ material box supports larger fertilizer loads and helps reduce the frequency of refilling during field operations.
Rear Dual-Disc Spreading System
The rear-mounted dual-disc device spreads material across the field through rotating discs, supporting broad fertilizer distribution.
Chain Plate Feeding System
A chain plate pushing system transfers fertilizer from the material box toward the rear spreading device.
6-12m Spreading Width
The specified spreading width is 6-12m and can be adjusted according to fertilizer and field application requirements.
15000kg Maximum Load Capacity
The specified maximum load capacity is 15000kg for fertilizer transportation and spreading operations.
Tractor-Towed Operation
The spreader is designed for towing operation and requires matched power of 100HP or above.
Technical Specifications
| Product Type | Hydraulic Trailed Dual-Disc Manure Spreader |
|---|---|
| Matched Power | 100HP or above |
| Overall Dimensions | 5600x2300x2590mm |
| Material Box Dimensions | 3990/3300×1980/1195x1395mm |
| Material Box Volume | 10m³ |
| Maximum Load Capacity | 15000kg |
| Spreading Device Type | Rear-Mounted Dual Disc |
| Fertilizer Feeding Method | Chain Plate Pushing |
| Spreading Width | 6-12m |
| Wheel Track | 1750mm |
| Tire Specification | 400/55-22.5 |
| Number of Tires | 2 |
| Operating Method | Rear Spreading |
| Structure Type | Box Body |
Applications
Suitable for:
- Agricultural fields
- Farms
- Planting bases
Applicable materials:
- Livestock manure
- Organic fertilizer
- Compound fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check the connection between the spreader and the towing equipment. Make sure connecting pins, hooks and related parts are secure and free from damage or looseness. Check tire pressure and wheel hubs. Inspect the spreading discs, disc blades and transmission components such as chains, belts and gears.
Loading and transportation safety
Do not exceed the specified maximum load capacity. Make sure the spreader is securely connected to the towing equipment before transport or field operation.
Operating safety
Control towing speed according to fertilizer type, required spreading width and field conditions. Adjust disc speed and spreading width according to the fertilization plan, observe the spreading result and make adjustments when necessary.
Maintenance precautions
After operation, remove fertilizer residue from the material box and spreading device. Water may be used for cleaning, but avoid allowing water to enter electrical and transmission components.
Maintenance Recommendations
- Clean residual fertilizer from the material box and spreading device after use to reduce corrosion.
- Inspect disc blades and transmission components regularly for wear. Replace severely worn parts when required.
- No specific lubrication interval is stated in the supplied product material.
- For long-term storage, keep the spreader in a dry and well-ventilated location to reduce moisture and rust.
