Description
Product Overview

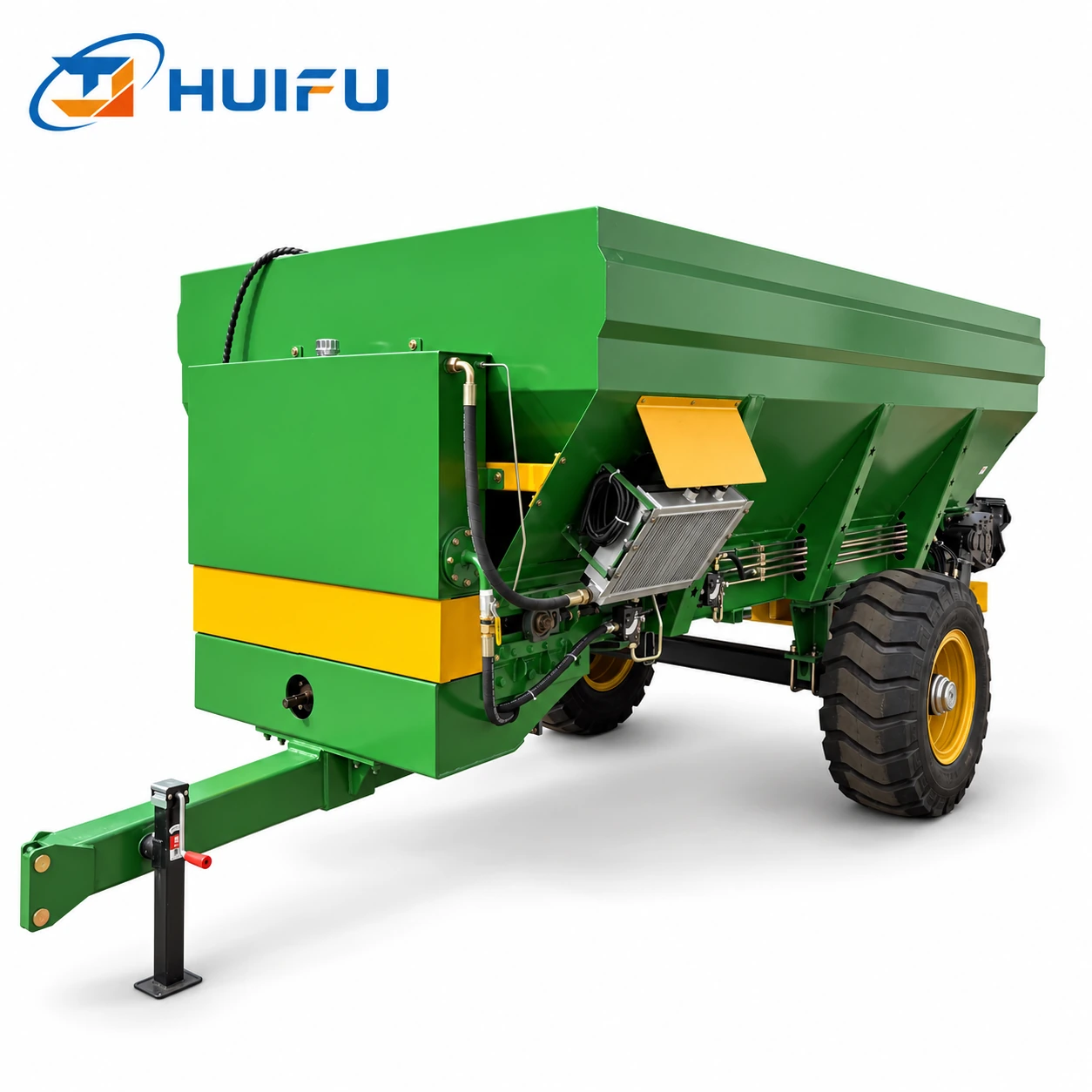

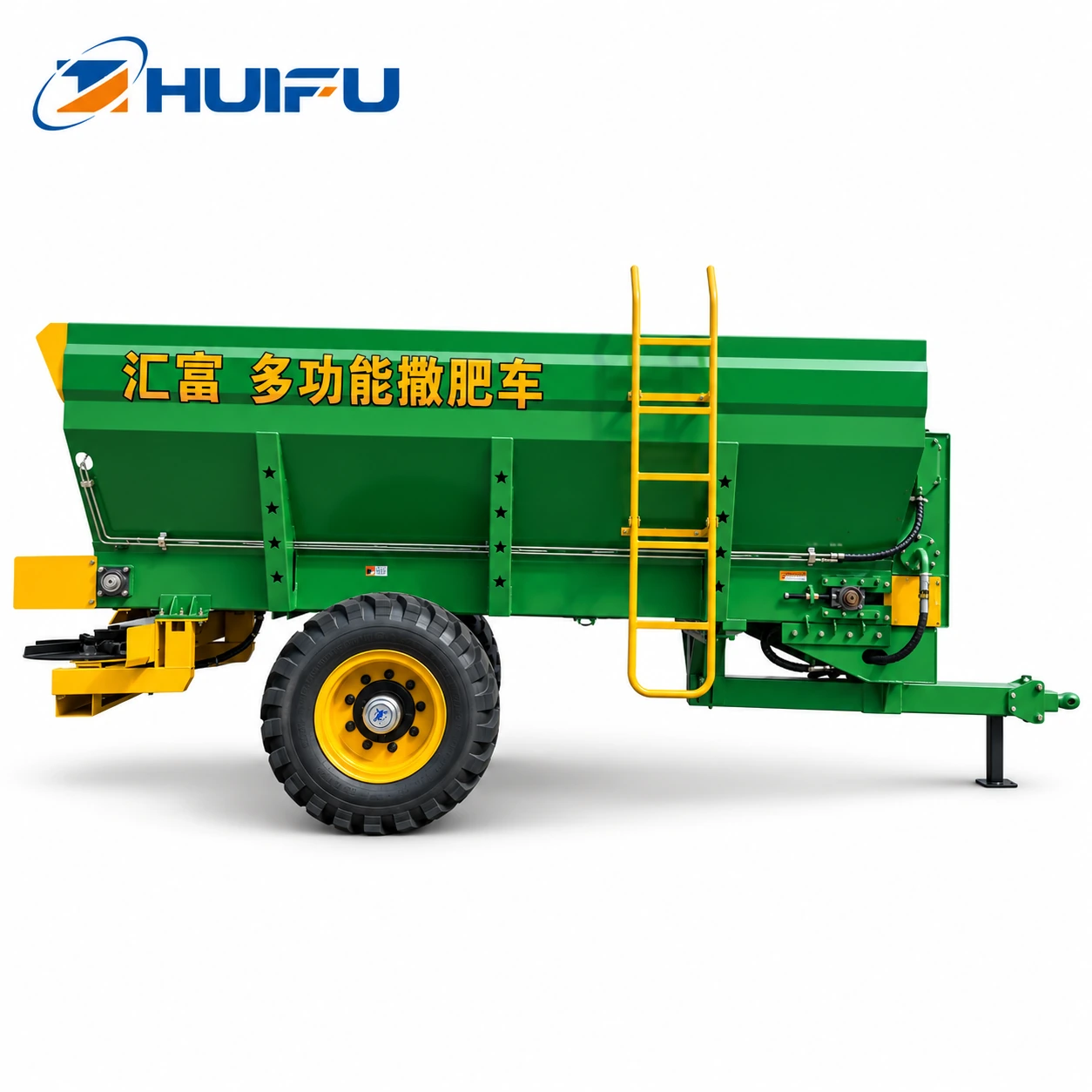

The 8 Cubic Meter Hydraulic Trailed Dual-Disc Manure Spreader is designed for transporting and spreading solid fertilizers in agricultural field operations.
The machine uses a trailed hopper structure with a chain-board material feeding system and a rear-mounted dual-disc spreading device. During operation, material is conveyed toward the rear spreading unit and distributed by the rotating discs.
With an 8m³ hopper capacity and a specified spreading width of 6-12m, the spreader is suitable for farm fertilization work using supported solid materials such as livestock and poultry manure, organic fertilizer and compound fertilizer.
Key Features and Advantages
8m³ Hopper Capacity
The 8m³ hopper is designed to carry a larger quantity of fertilizer, helping reduce the frequency of reloading during field operations.

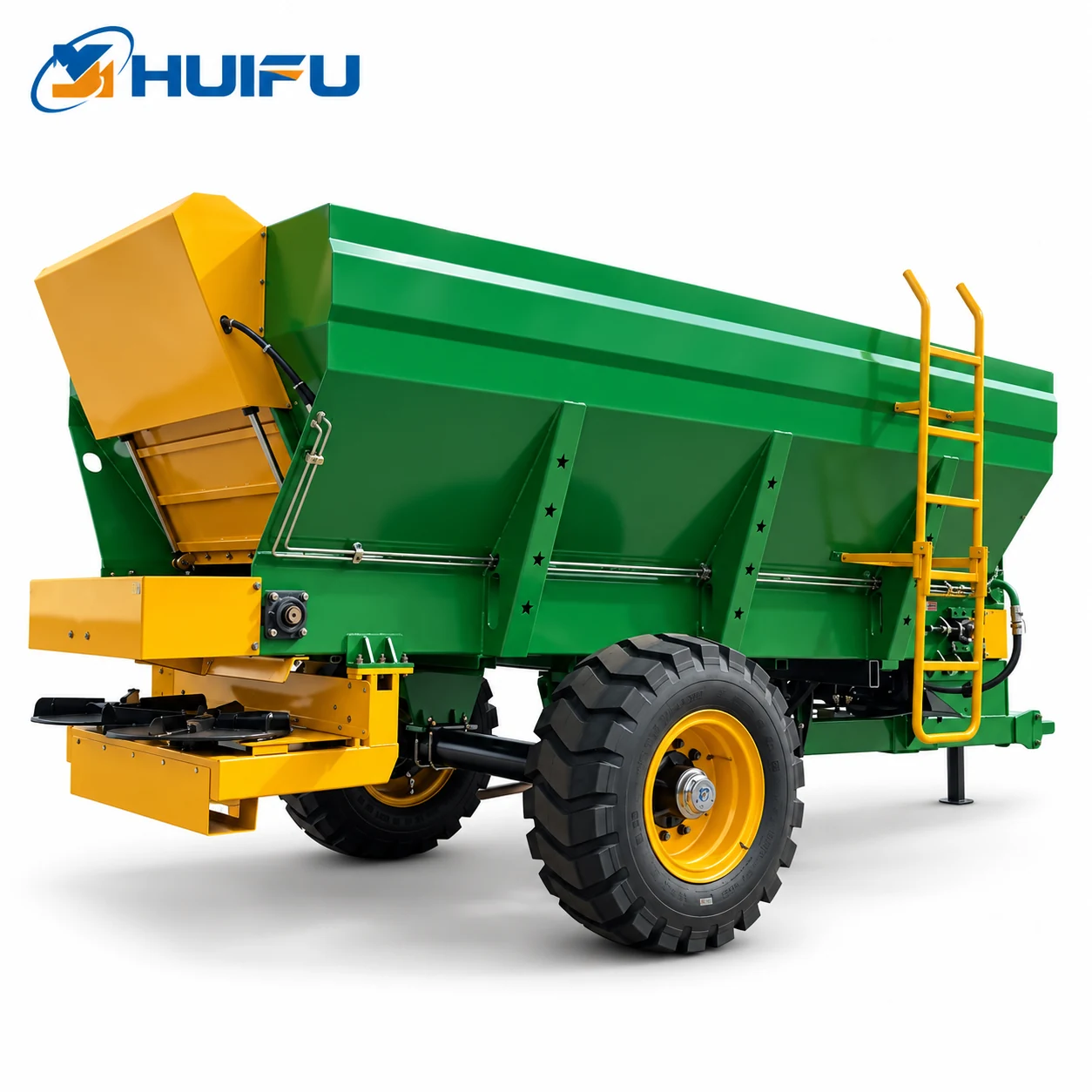

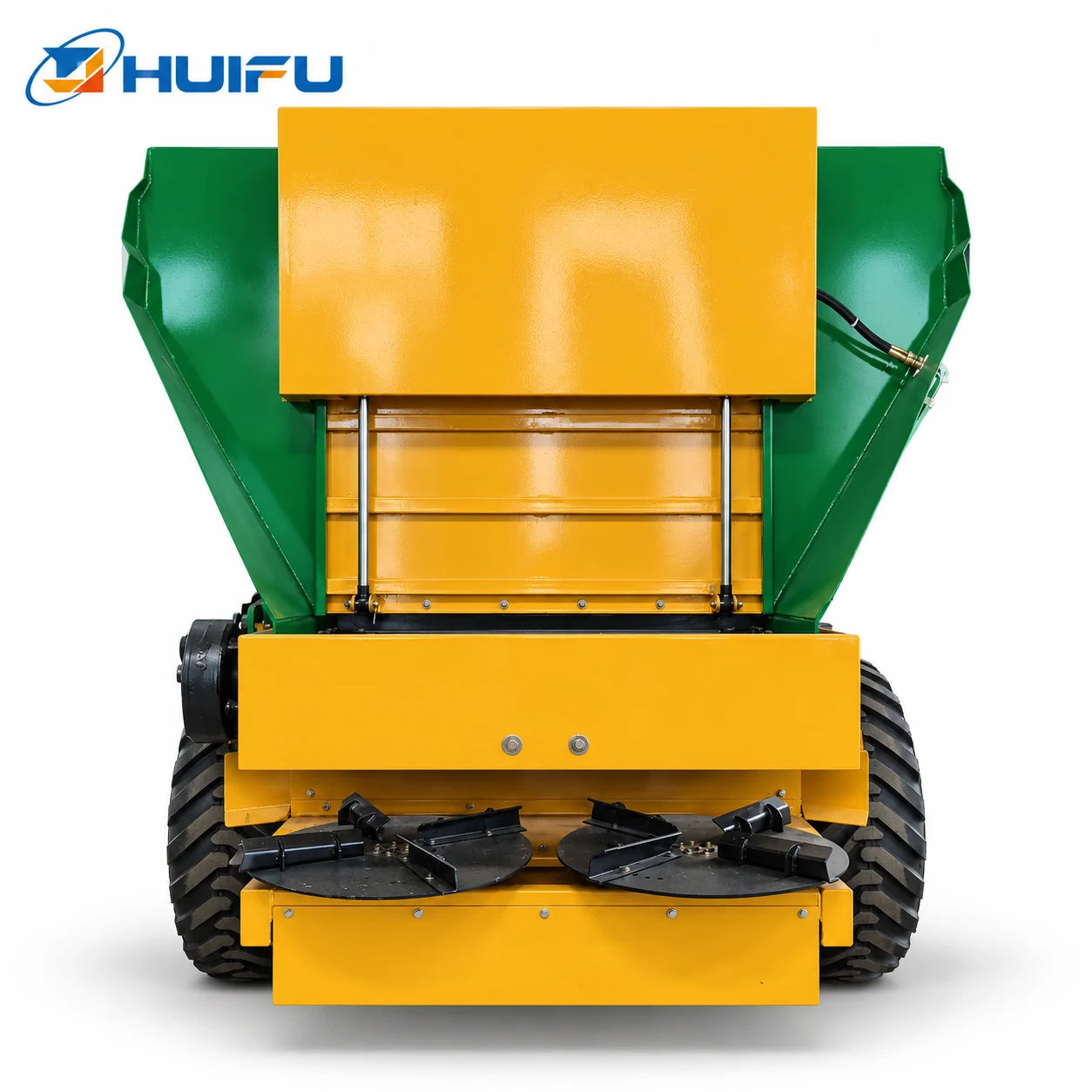

Rear Dual-Disc Spreading System
The rear-mounted dual-disc spreading device distributes fertilizer over the working area. Spreading width can be adjusted according to field requirements.
Chain-Board Material Feeding
A chain-board pushing system conveys fertilizer from the hopper toward the rear spreading mechanism for material delivery during operation.
6-12m Spreading Width
The specified spreading width is 6-12m, supporting wide-area agricultural field fertilization.

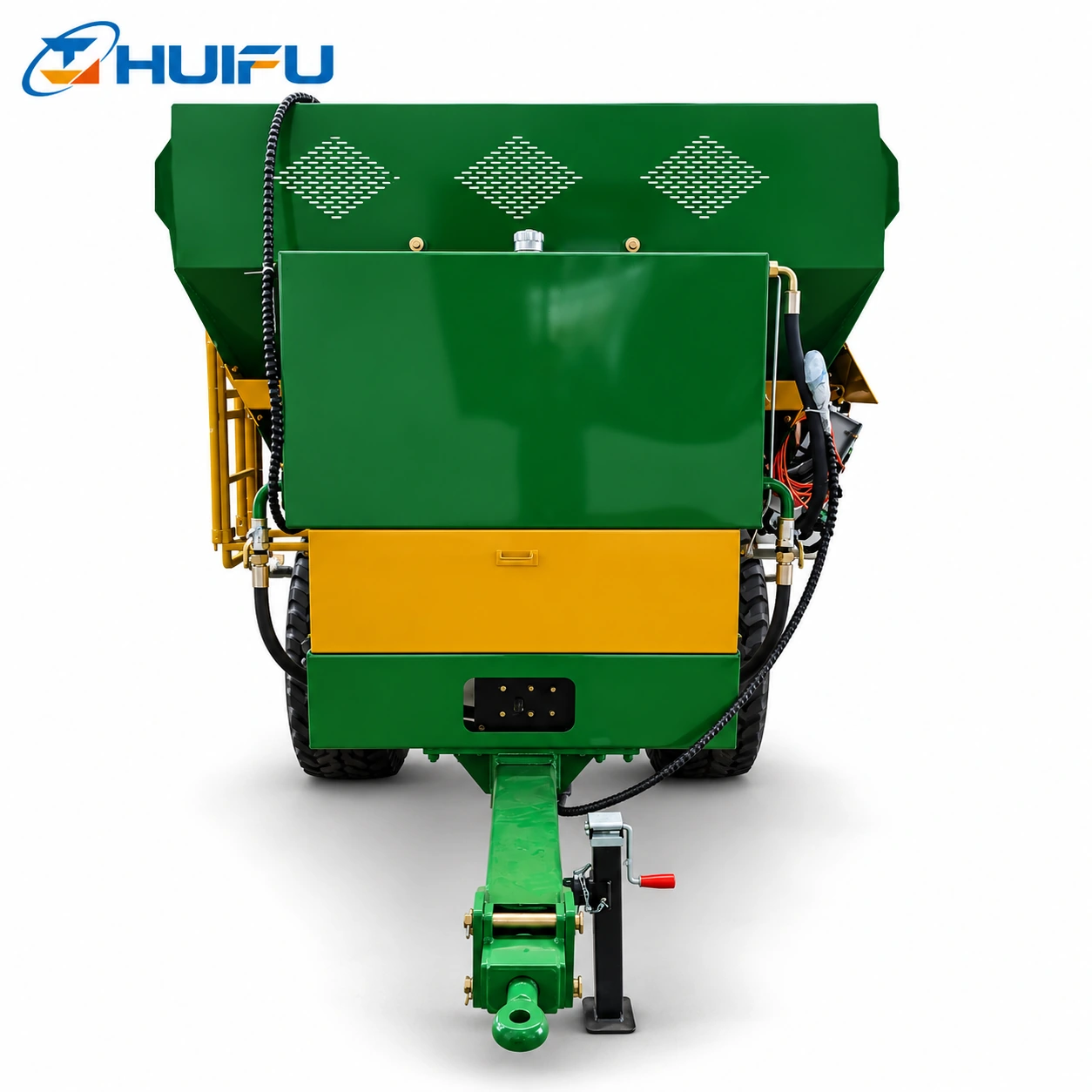

Trailed Agricultural Configuration
The spreader is designed to operate with towing equipment such as a tractor. The required matched power is 80HP or above.
Mechanical Fertilizer Application
Mechanical spreading reduces manual fertilizer handling and supports fertilization work across different farm sizes.
Technical Specifications
| Product Type | Hydraulic Trailed Dual-Disc Manure Spreader |
|---|---|
| Required Power | 80HP or above |
| Overall Dimensions | 5600x2300x2320mm |
| Hopper Dimensions | 3855/3210×1800/1195x1140mm |
| Hopper Volume | 8m³ |
| Maximum Load Capacity | 10000kg |
| Spreading Device Type | Rear-mounted dual disc |
| Fertilizer Feeding Method | Chain-board pushing |
| Spreading Width | 6-12m |
| Track Width | 1750mm |
| Tire Specification | 16/70-20 |
| Number of Tires | 2 |
| Operating Method | Rear spreading |
| Structure Type | Hopper body |
Applications
Suitable for:
- Agricultural fields
- Farm fertilization operations
- Small to large-scale planting operations
Applicable materials:
- Livestock and poultry manure
- Organic fertilizer
- Compound fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check the connection between the manure spreader and towing equipment. Make sure connecting pins, hooks and related parts are secure and free from damage or looseness. Check tire pressure, wheel hubs, spreading discs, disc blades and transmission components before operation.
Loading and transportation safety
Do not exceed the rated fertilizer load. During towing and field movement, operate at a suitable travel speed according to field conditions and the material being spread.
Operating safety
Adjust disc speed and spreading width according to the fertilizer type and fertilization requirements. Observe the spreading result during operation and make adjustments when required. Avoid overloading, which may affect vehicle movement, spreading performance or equipment condition.
Maintenance precautions
After fertilization work, remove residual fertilizer from the hopper and spreading device. Water may be used for cleaning, but avoid allowing water to enter electrical components and transmission parts.
Maintenance Recommendations
- Clean residual fertilizer from the hopper and spreading device after operation to reduce corrosion.
- Inspect disc blades and transmission components regularly for wear and replace severely worn parts when required.
- Keep the spreading and transmission components clean and in serviceable condition.
- For long-term storage, keep the spreader in a dry, well-ventilated location to reduce moisture and rust.
