Description
Product Overview

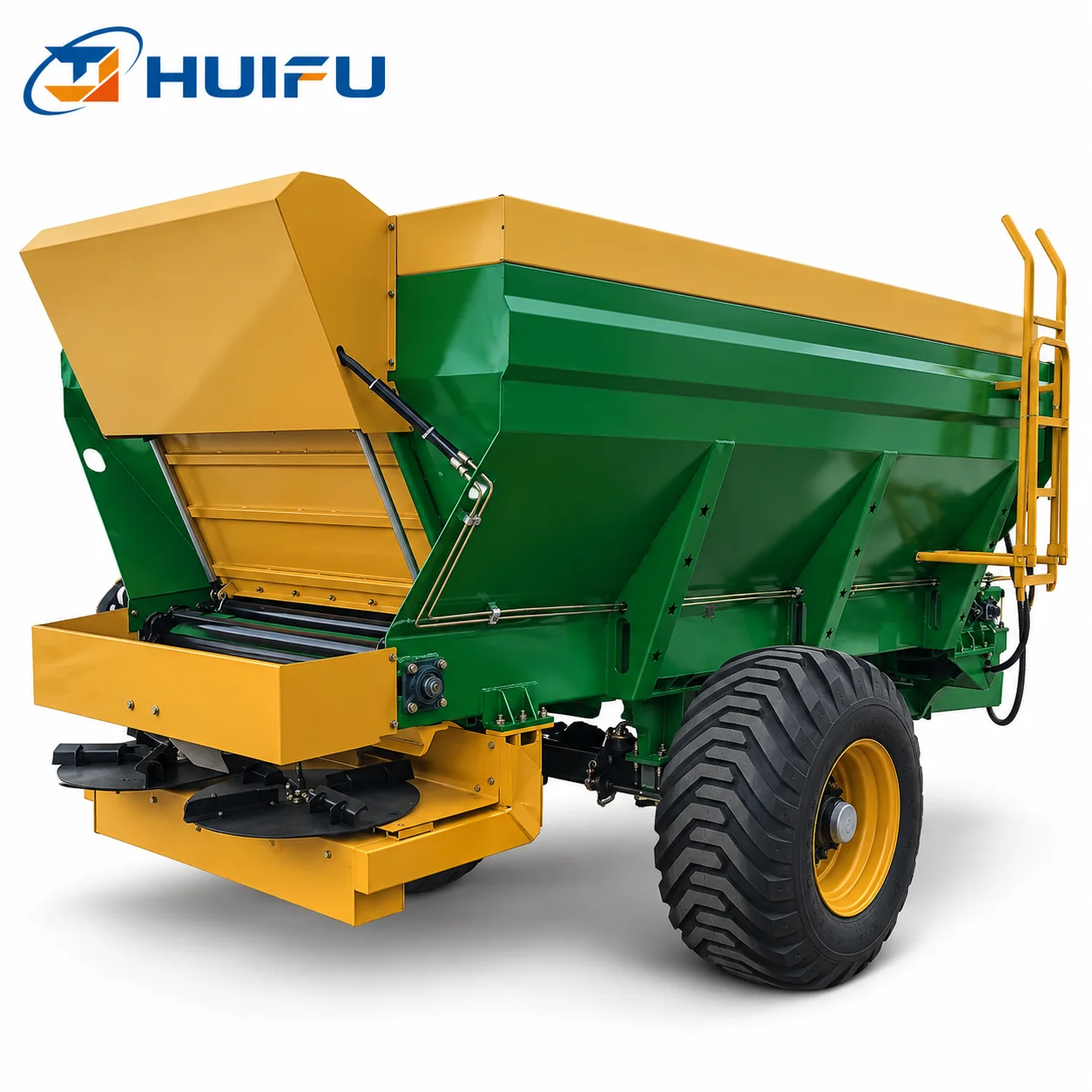

The 12 Cubic Meter Hydraulic Trailed Dual-Disc Manure Spreader is designed for transporting and spreading solid fertilizers in agricultural field operations. It is used with a tractor or other suitable towing equipment and combines a large fertilizer hopper, chain-board feeding system, and rear dual-disc spreading device.
The rotating disc spreading system distributes solid fertilizer across the field, while the spreading width can be adjusted according to operating requirements. With a 12 m³ hopper and rear spreading configuration, the machine is suitable for mechanized fertilizer application from smaller farms to larger planting operations.
Key Features and Advantages
12 m³ Large-Capacity Hopper
The 12 m³ hopper provides increased material capacity and helps reduce the frequency of refilling during field fertilizing operations.
Rear Dual-Disc Spreading System
The rear-mounted dual-disc spreading device uses rotating discs to distribute solid fertilizer over a wide working area.
Chain-Board Fertilizer Feeding
The chain-board pushing system moves fertilizer toward the rear spreading mechanism for continuous field application.
Adjustable Spreading Width
The specified spreading width is 6-12m, allowing the working width to be adjusted according to fertilizer type and field requirements.
Mechanized Fertilizer Application
The trailed spreading structure reduces reliance on manual fertilizer spreading and supports larger-area field operations.
Designed for Solid Fertilizers
The machine is intended for solid fertilizers such as livestock manure, organic fertilizer, and compound fertilizer.
Technical Specifications
| Product Type | Hydraulic Trailed Dual-Disc Manure Spreader |
|---|---|
| Required Tractor Power | 120HP or above |
| Overall Dimensions | 5600x2300x3100mm |
| Hopper Dimensions | 3855/3210×1800/1195x1540mm |
| Hopper Capacity | 12m³ |
| Maximum Load Capacity | 18000kg |
| Spreading Device Type | Rear Dual Disc |
| Fertilizer Feeding Method | Chain Board Push Feeding |
| Spreading Width | 6-12m |
| Track Width | 2030mm |
| Tire Specification | 500/60-22.5 |
| Number of Tires | 2 |
| Working Method | Rear Spreading |
| Structure Type | Hopper Body |
Applications
Suitable for:
- Agricultural fields
- Farm fertilizer application
- Planting operations
Applicable materials:
- Livestock manure
- Organic fertilizer
- Compound fertilizer
Operation Instructions and Safety Notes
Pre-operation inspection
Check the connection between the manure spreader and the towing equipment. Ensure that connecting pins, hooks, tires, wheel hubs, spreading discs, disc blades, and transmission components are secure and in normal condition. Remove any material blocking the spreading mechanism before operation.
Loading and transportation safety
Do not exceed the rated load capacity. Before moving the machine, confirm that the connection to the towing equipment is secure and that the tires and wheel hubs are in safe operating condition.
Operating safety
Control towing speed according to fertilizer type, required spreading width, and field conditions. Adjust disc speed and spreading width according to the fertilizing plan, observe the spreading result during operation, and make adjustments when necessary. Avoid overloading the machine.
Maintenance precautions
After fertilizer application, remove residual fertilizer from the hopper and spreading device. Water may be used for cleaning, but avoid allowing water to enter electrical and transmission components.
Maintenance Recommendations
- Clean residual fertilizer from the hopper and spreading mechanism after operation to reduce corrosion.
- Check the disc blades and transmission components regularly for wear and replace severely worn parts when necessary.
- Keep rotating and transmission components clean and in proper working condition during routine maintenance.
- For long-term storage, keep the manure spreader in a dry, well-ventilated location to reduce moisture and rust.
