Description

Product Overview

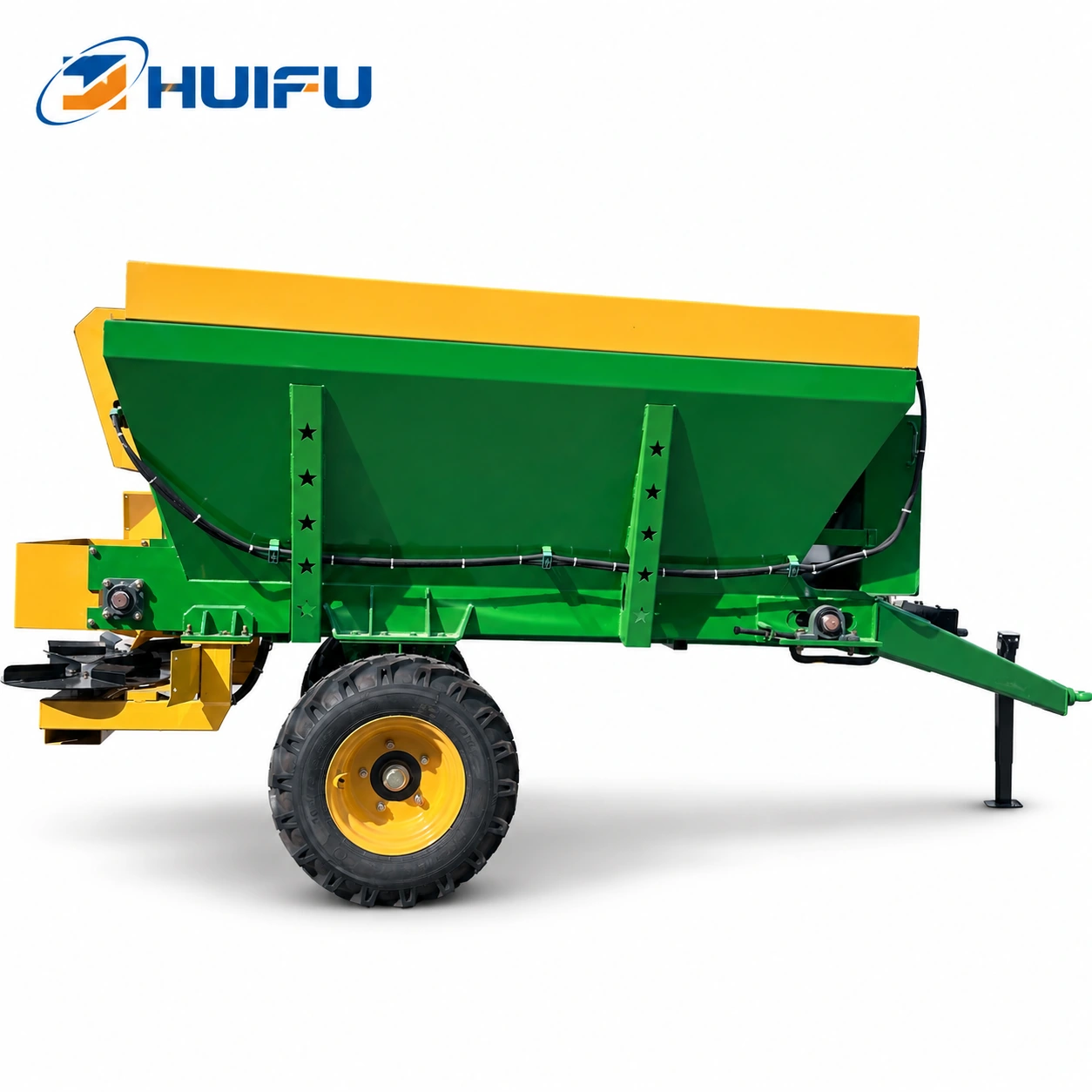

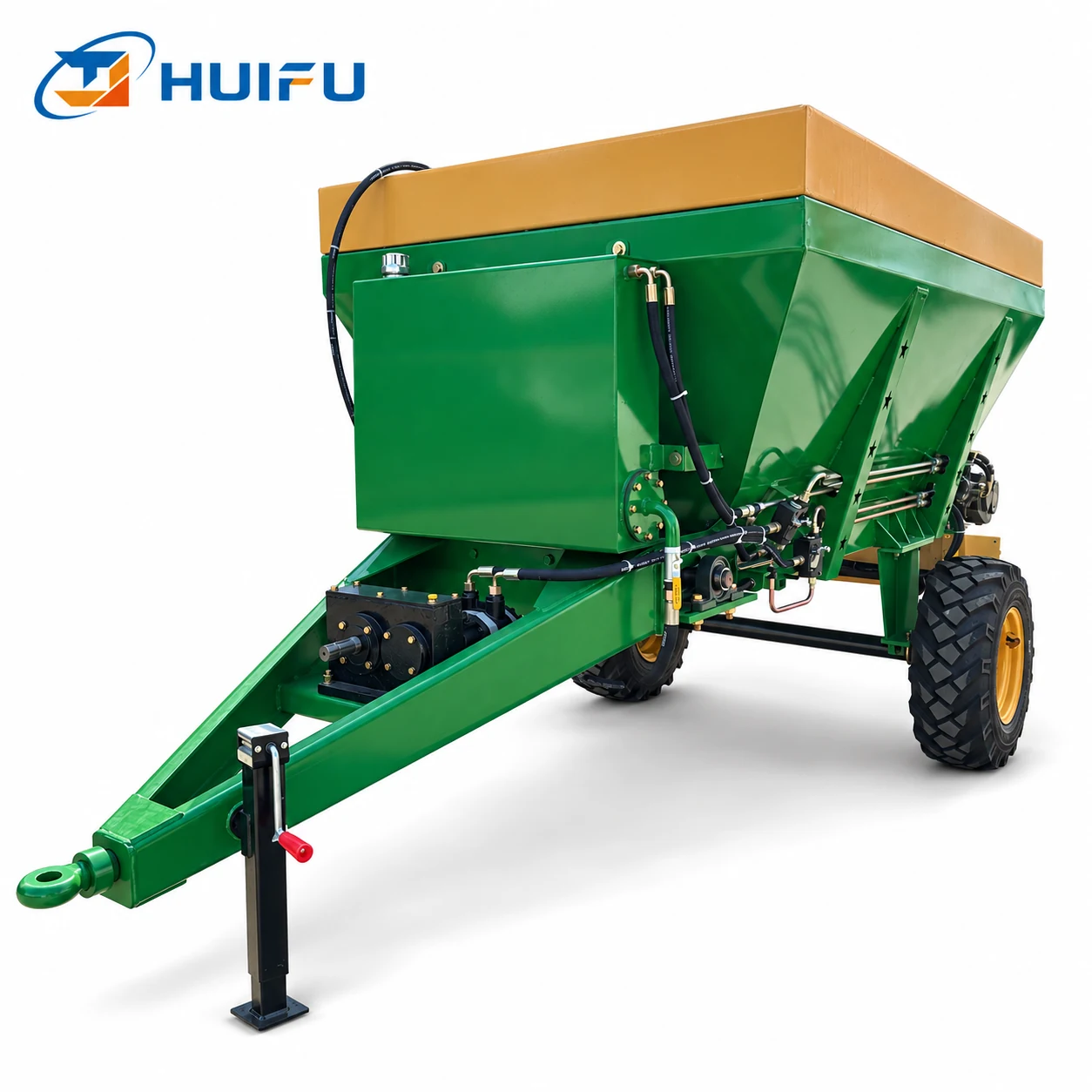

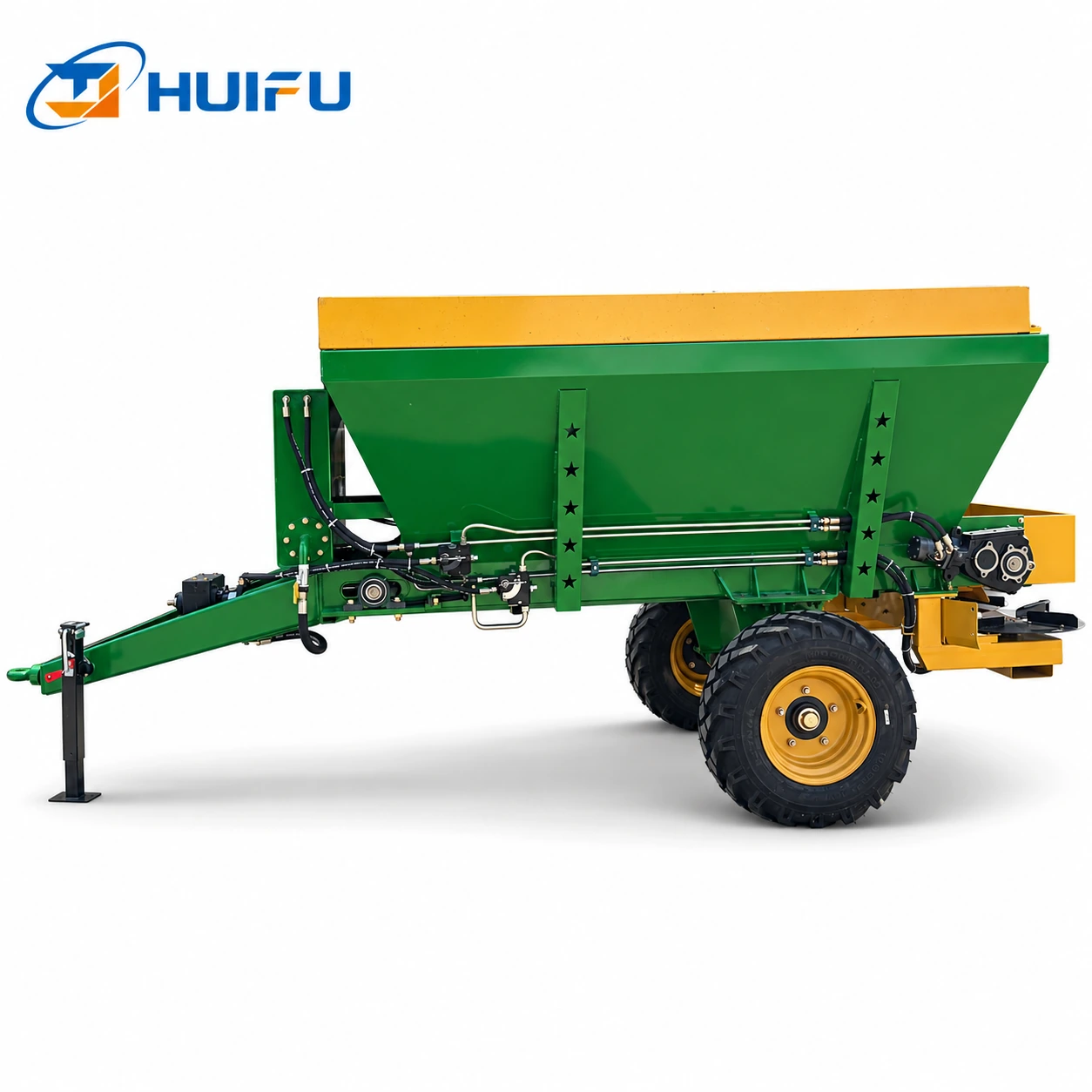

The 3 Cubic Meter Hydraulic Trailed Dual-Disc Manure Spreader is designed for spreading solid fertilizers across agricultural fields. It is a trailed disc-type spreader intended for use with tractors rated at 40 HP or above.

The machine combines a 3m³ fertilizer hopper, chain-board material feeding system and rear dual-disc spreading device. During operation, solid fertilizer is delivered toward the rear spreading unit and distributed by the rotating discs. The spreading width can be adjusted according to field conditions and fertilizer requirements.

It is suitable for solid materials including livestock and poultry manure, organic fertilizer and compound fertilizer, and can be used for fertilizer application on farms and planting bases of different scales.

Key Features and Advantages

Trailed Disc-Type Spreading Structure

The machine uses a trailed configuration with a rear-mounted disc spreading system for field fertilizer application.

3m³ Fertilizer Hopper

The hopper has a stated capacity of 3m³, reducing the need for frequent refilling during spreading operations.

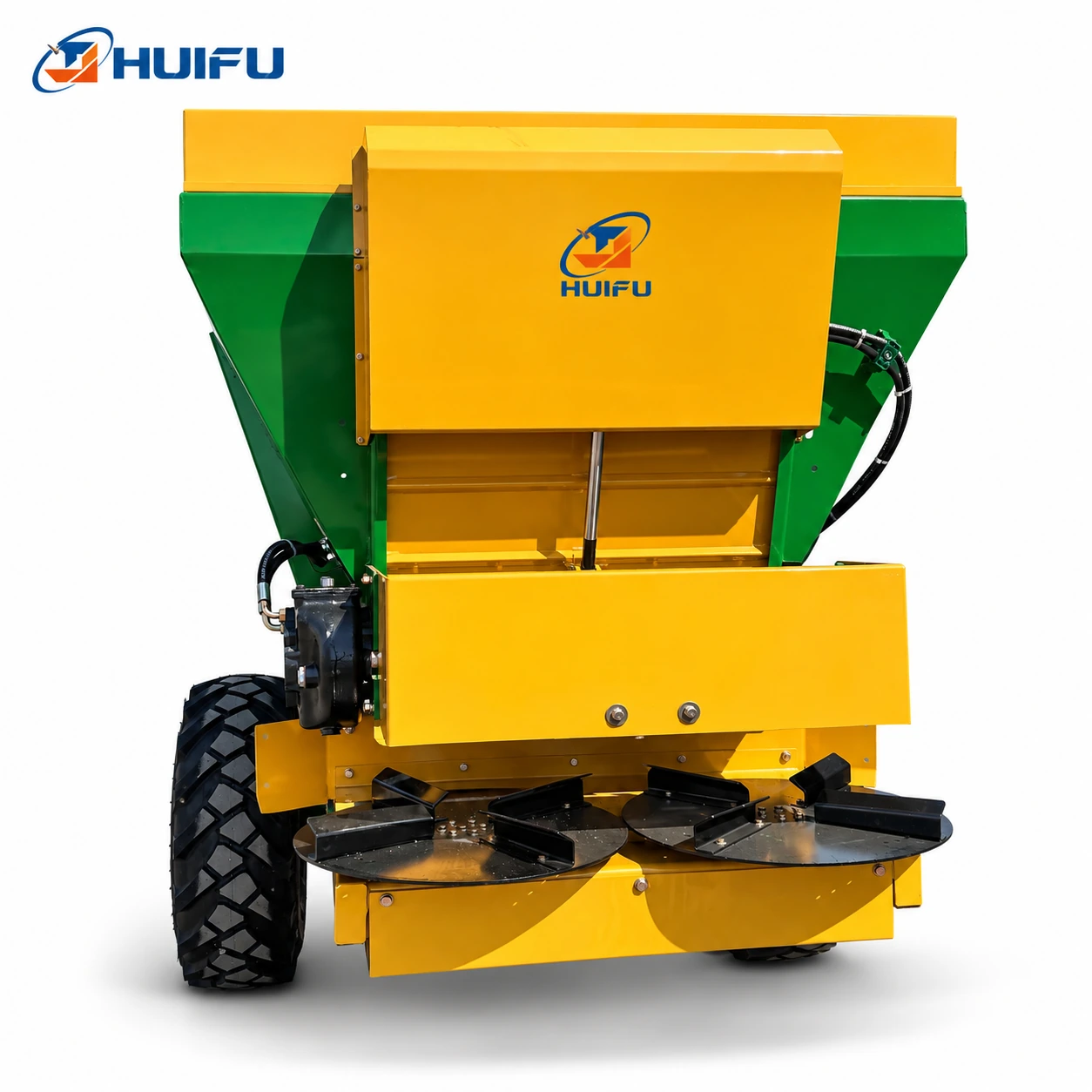

Rear Dual-Disc Spreading Device

The rear dual-disc device distributes fertilizer across the working area and supports relatively even application when correctly adjusted.

Chain-Board Material Feeding

A chain-board pushing system delivers fertilizer from the hopper toward the rear spreading device during operation.

6-12 m Adjustable Spreading Width

Spreading settings can be adjusted according to fertilizer type, application requirements and field conditions.

5,000 kg Maximum Load Capacity

The specified maximum load capacity is 5,000 kg. Operators should avoid overloading and keep the material load within the rated limit.

Reduced Manual Fertilizer Handling

Mechanized fertilizer spreading reduces the need for prolonged manual spreading and heavy fertilizer handling during field application.

Technical Specifications

Applications

Suitable operating environments:

• Agricultural fields
• Small farms
• Large planting bases

Applicable materials:

• Livestock and poultry manure
• Organic fertilizer
• Compound fertilizer

Operation Instructions and Safety Notes

Pre-operation Inspection

Check the connection between the manure spreader and the towing equipment. Make sure connecting pins, hooks and related parts are secure and free from damage or looseness. Check tire pressure and wheel hubs. Inspect the spreading discs, disc blades and transmission components, and remove any foreign material that may obstruct rotation.

Loading and Transportation Safety

Do not exceed the rated fertilizer load. Overloading may affect vehicle movement, spreading performance and equipment condition. Keep the load within the specified capacity before transport and field operation.

Operating Safety

Control towing speed according to fertilizer type, required spreading width and field conditions. Adjust disc speed and spreading width according to the fertilizer application plan. Observe spreading performance during operation and make adjustments when necessary.

Maintenance Precautions

After spreading, remove residual fertilizer from the hopper and spreading device. Water may be used for cleaning, but avoid allowing water to enter electrical components and transmission parts.

Maintenance Recommendations

• Clean residual fertilizer from the hopper and spreading device after each operation to reduce fertilizer-related corrosion.
• Inspect the disc blades and transmission components regularly for wear. Replace severely worn parts when necessary.
• Keep transmission and rotating parts in serviceable condition and check for abnormal wear or blockage during routine inspection.
• For long-term storage, keep the manure spreader in a dry, well-ventilated location to reduce moisture and rust.
